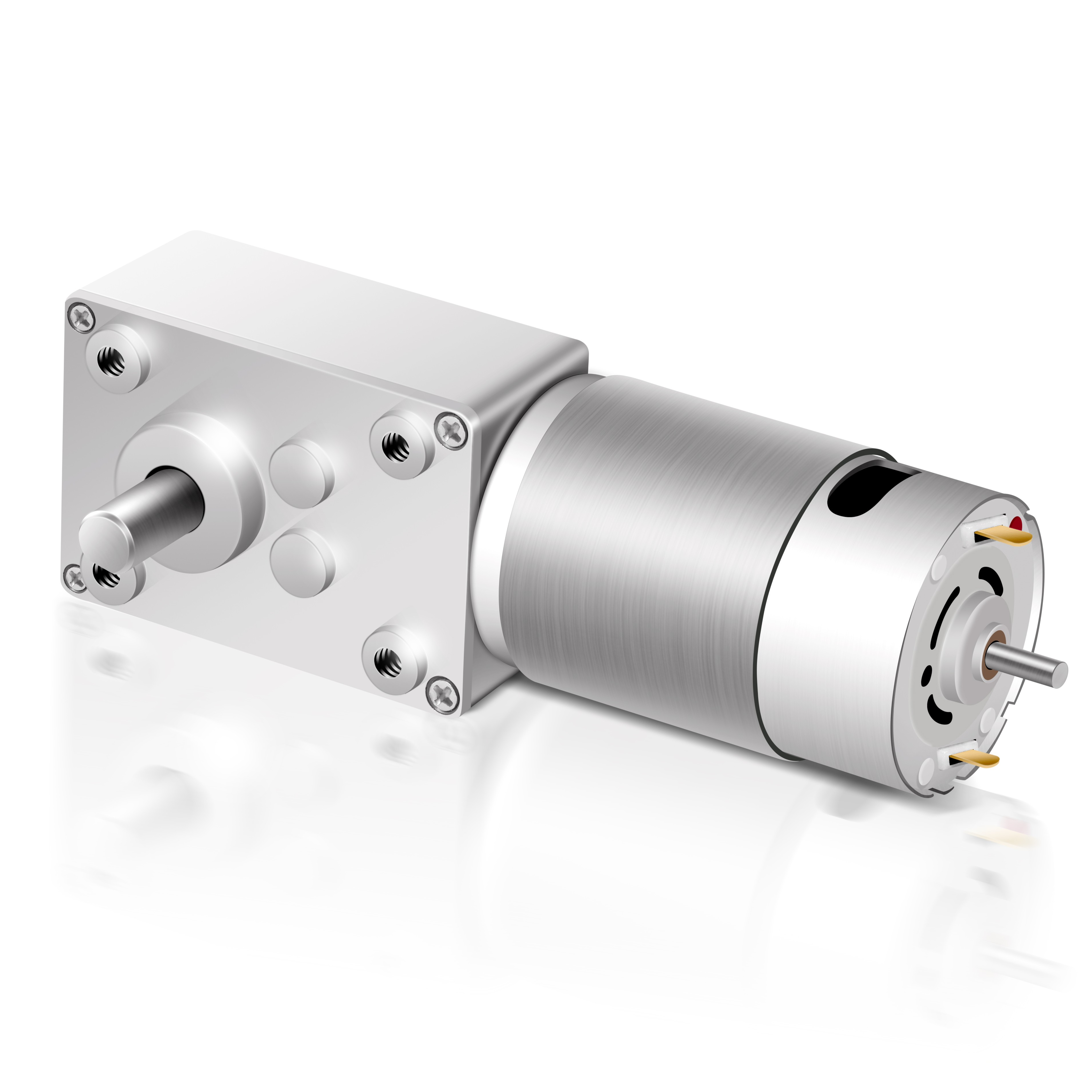

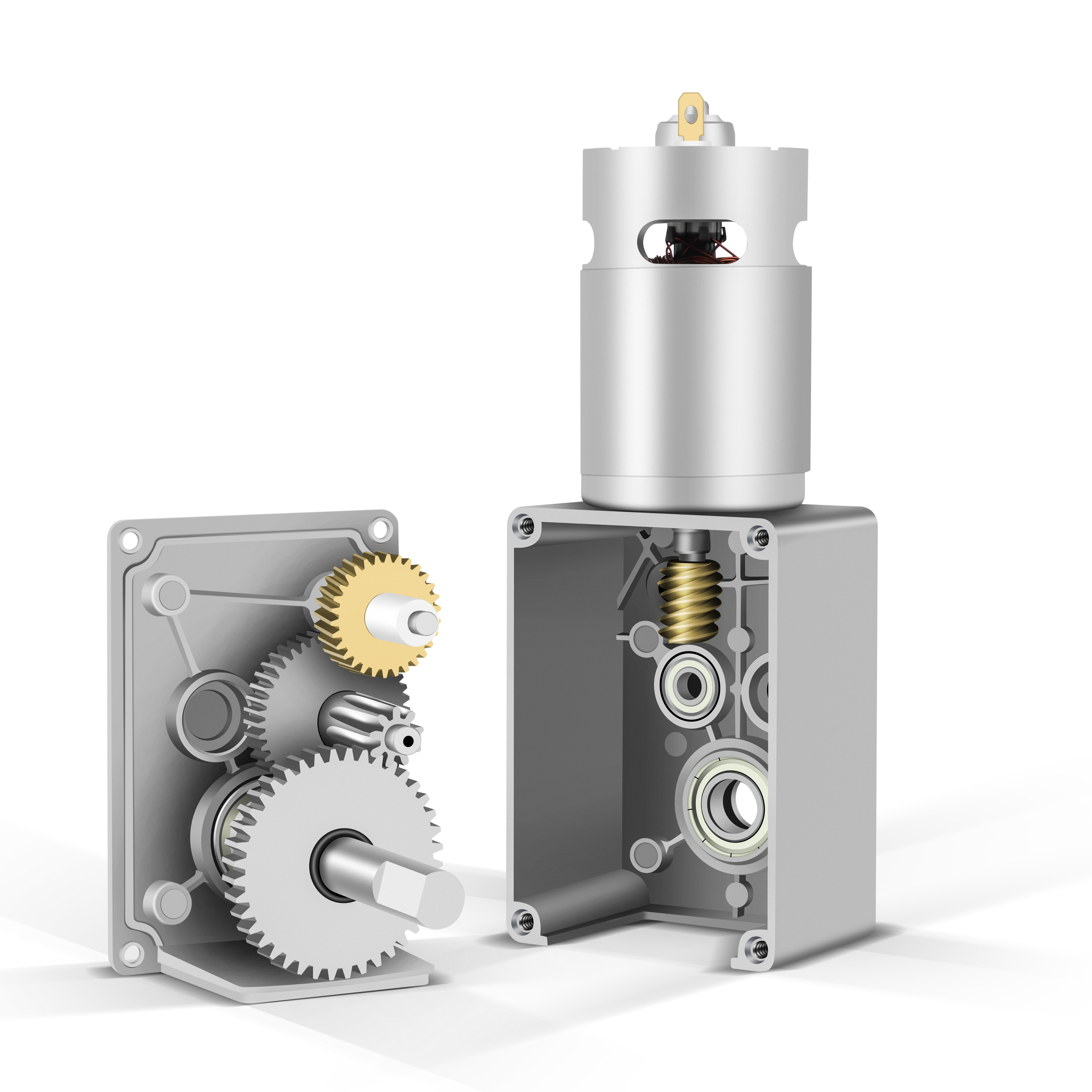

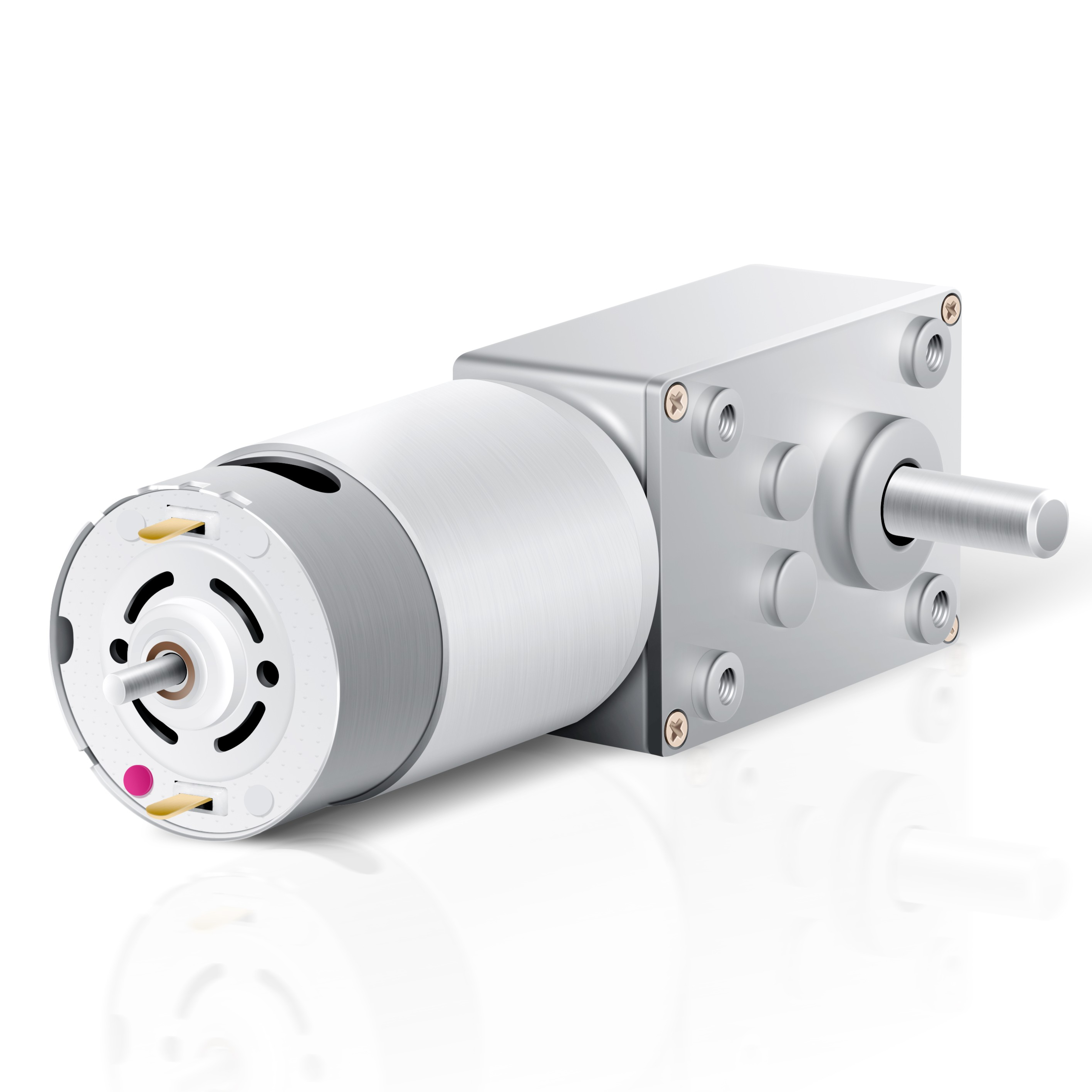

Factory 0.8nm Worm Gear Motor Brush Brushless Worm Gear Motor For For 3d Printing Pen

Product Description

Factory 0.8nm Worm Gear Motor Brush Brushless Worm Gear Motor For 3D Printing Pen

Promotion
Worm Gear Motor Detail 1
Worm Gear Motor Detail 2

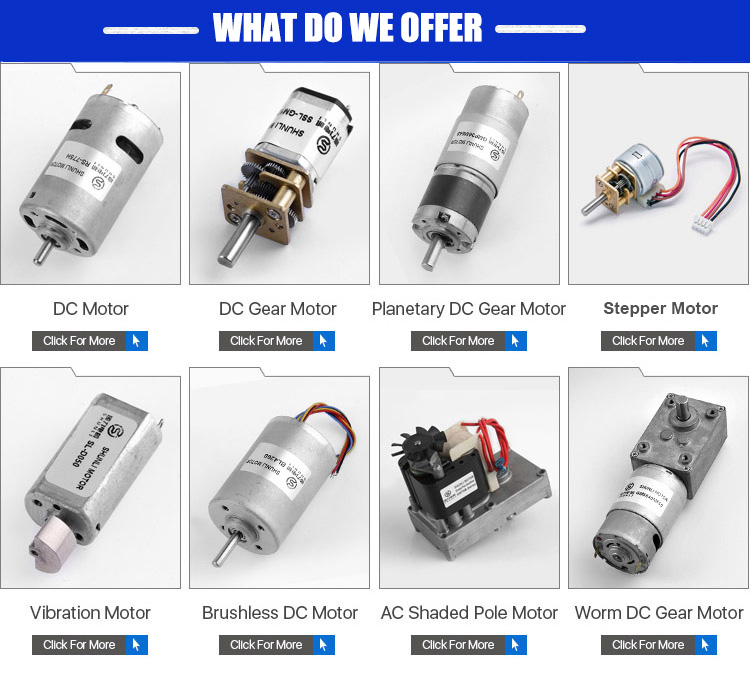

Worm Gear Motor Overview
Product Description
Product Details

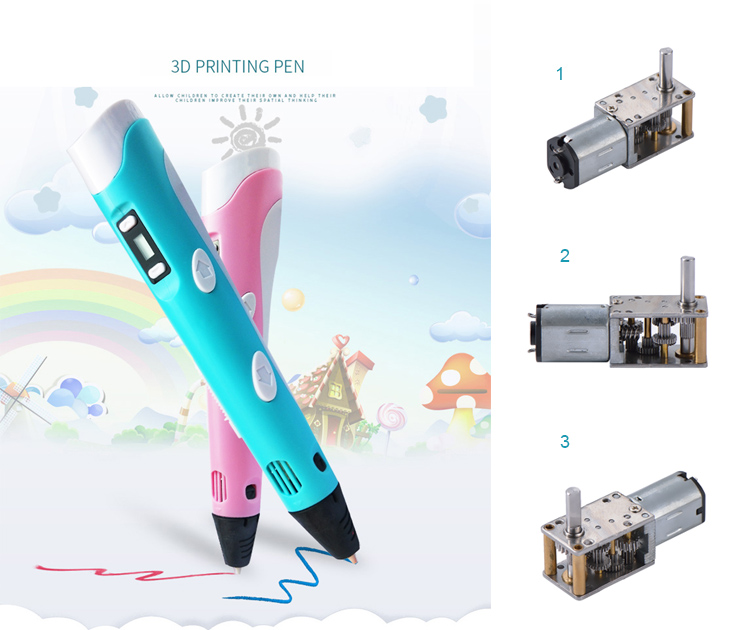

Factory Worm Gear Motor Details
Specification
Gearbox Technical Data
Parameter Specification Details
Ratio 41K / 82K / 95K / 190K / 219K / 438K / 504K / 1007K
Max. Rated Torque 300~800 gf.cm
Max. Gear Breaked Torque 1000~3000 gf.cm
Gearbox Efficiency 12%~35%
Gearmotor Technical Data
Gearmotor Model Ratio Rated Voltage (V) No-Load Rated Stall
Speed Current Speed Current Torque Current Torque
RPM mA RPM mA mN.m / gf.cm mA mN.m / gf.cm
GM1220EMN20-95K 1 : 95 4.5 VDC 145 ≤ 70 122 ≤ 200 8 / 80 ≤ 700 75 / 750
GM1220EMN30-1007K 1 : 1007 12 VDC 25 ≤ 90 22 ≤ 230 120 / 1200 ≤ 400 420 / 4200

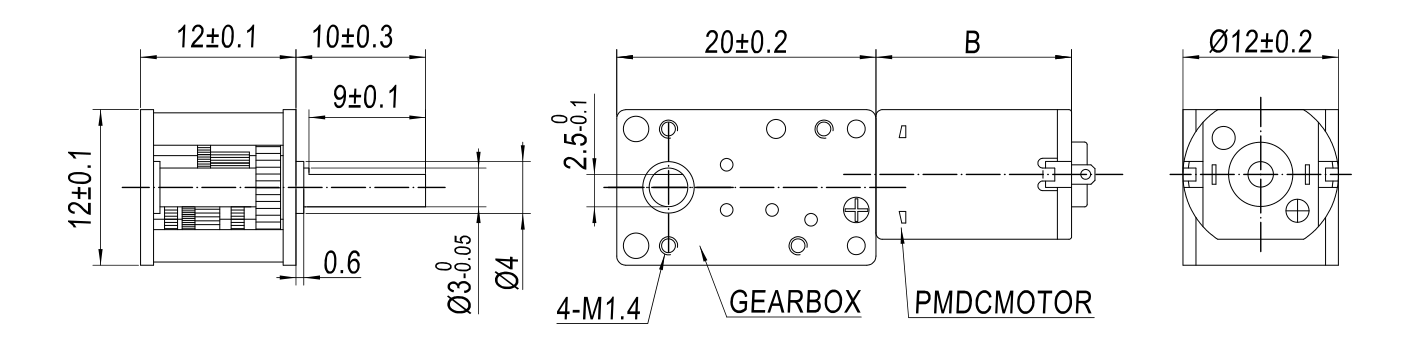

Worm Gear Motor Structural Dimensions
PMDC MOTOR Technical Data
PMDC MOTOR Model Length "B" (mm) Rated Voltage (V) No-Load Rated Stall
Speed Current Speed Current Torque Current Torque
RPM mA RPM mA mN.m / gf.cm mA mN.m / gf.cm
SL-N20 04514000 15 4.5 VDC 14000 ≤ 40 12000 ≤ 130 0.25 / 2.5 ≤ 650 1.5 / 15
SL-N30 1225400 20 12 VDC 25400 ≤ 50 22600 ≤ 170 0.5 / 5 ≤ 380 4.2 / 42
Application
Application fields of Worm Gear Motor
Customer Evaluation

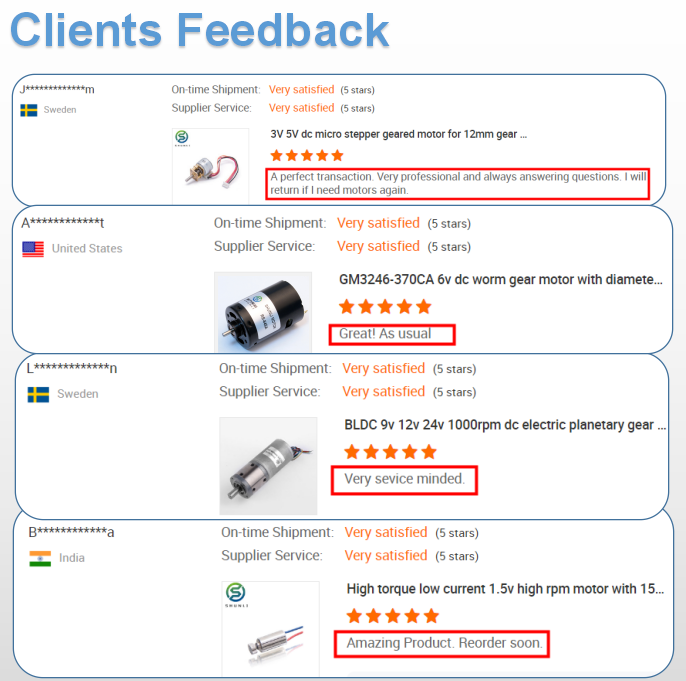

Customer Evaluation Feedback
Certification
Quality Certification Document 1
Quality Certification Document 2
Our Company

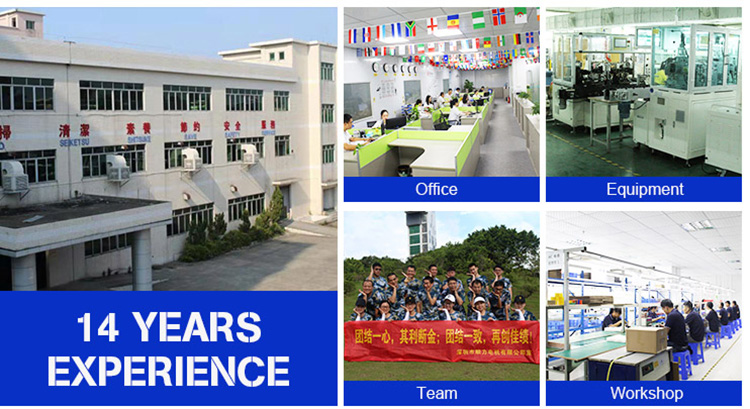

Company Plant Overview
Company Equipment Detail
Established in 2005, it is a high-tech enterprise integrating the research, development, production and sales of various kinds of micro DC motor, geared motor, planetary geared motor, shade pole geared motor and special gearbox motor. Products are widely used in automobiles, communications equipment, smart home, medical equipment, intelligent security, household appliances, western kitchen equipment, machinery and electronics and other high-end transmission structures, products are exported to more than 50 countries and regions at home and abroad.
Production Line View
Frequently Asked Questions
QAre you a trading company or a manufacturer?
We are a factory. We have specialized in micro DC motors and DC gear motors for more than 14 years.
QWhat is the payment term for a new customer?
We can arrange online assurance transactions with standard online payment methods (Mastercard, Visa, PayPal, TT, etc.).
QCan you customize a motor if I cannot find a suitable one on the website?
Yes, we can design and customize a suitable motor according to your specific functional requirements.
QDo you have certifications for the motors?
Yes, our motors are certified with CE, FCC, ISO, and others. We can apply for additional certifications if required.
QHow do you maintain quality control?

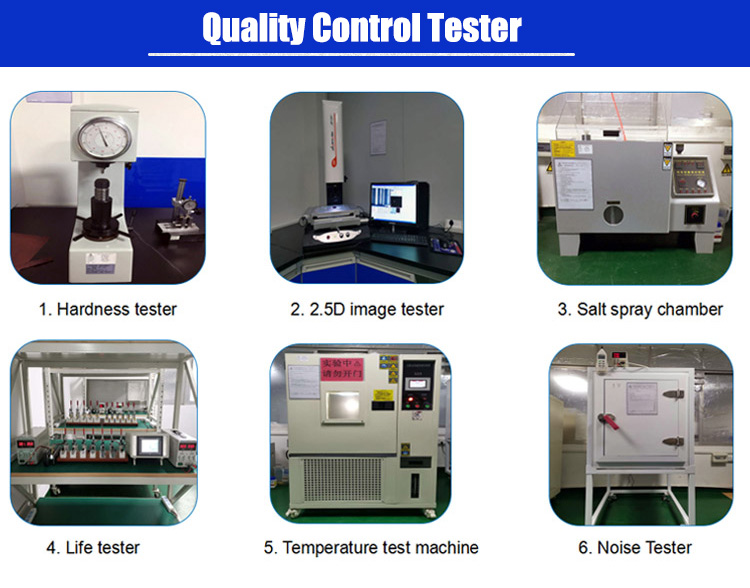

We have QC personnel stationed on each production line. Complete motors undergo extensive machine testing, including Hardness, 2.5D Image, Salt Spray, Lifetime, Temperature, and Noise assessments.
QCan I request samples for testing before ordering?
Yes, we support sample evaluation for customers to test performance and quality before placing mass production orders.

Looking forward to your feedback!

Please feel free to send us your requirements, and we will get back to you as soon as possible.
