Product Description

Micro DC Motor Banner

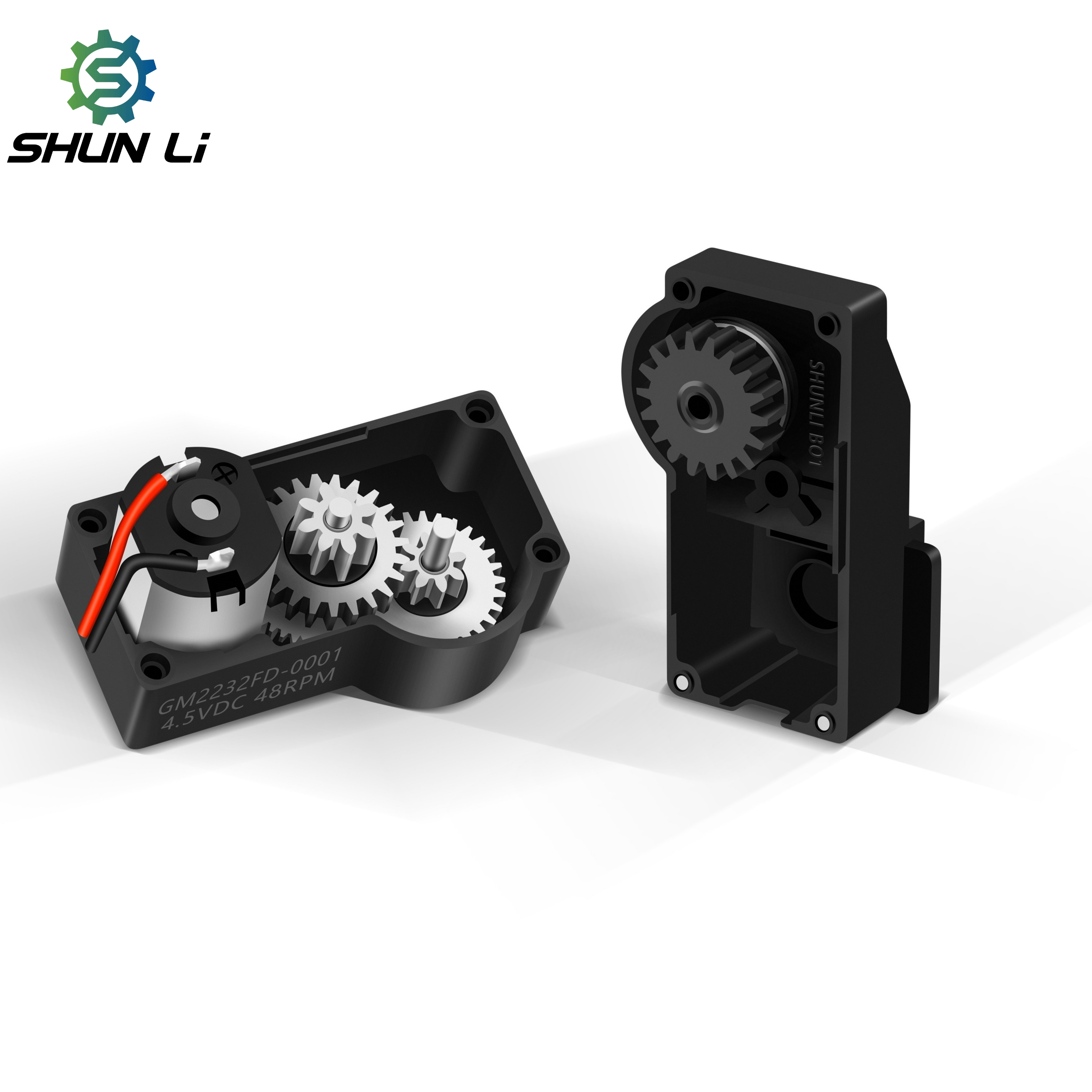

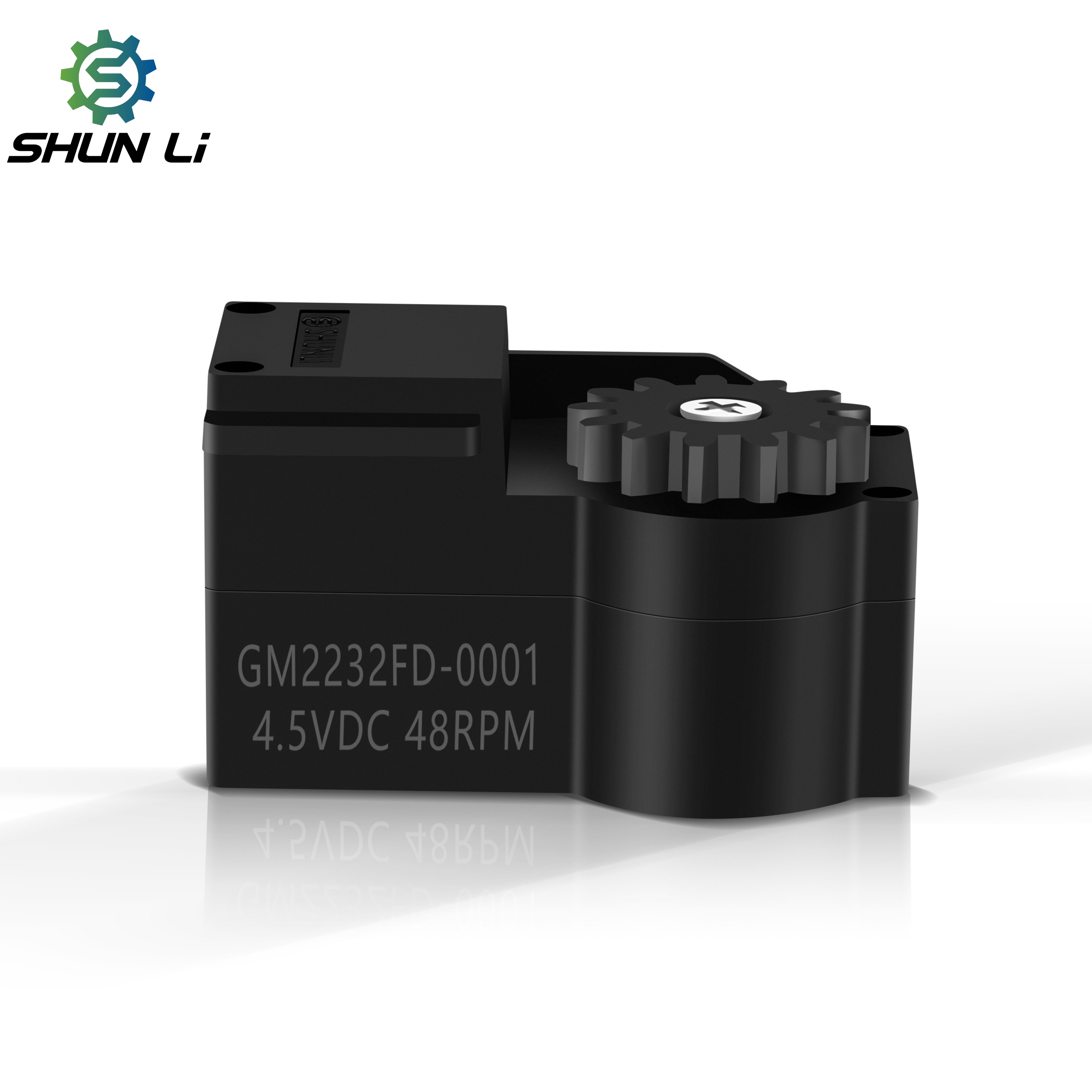

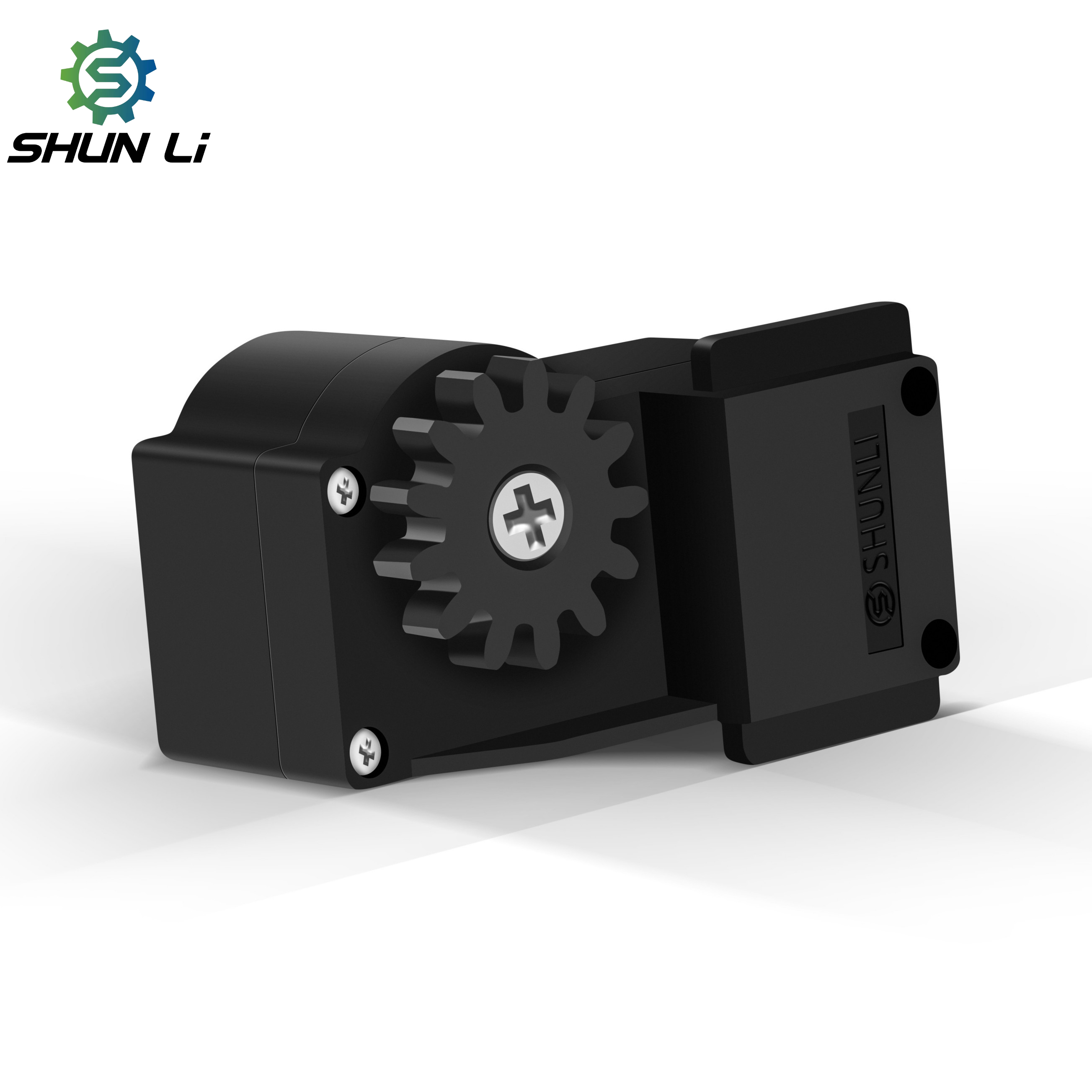

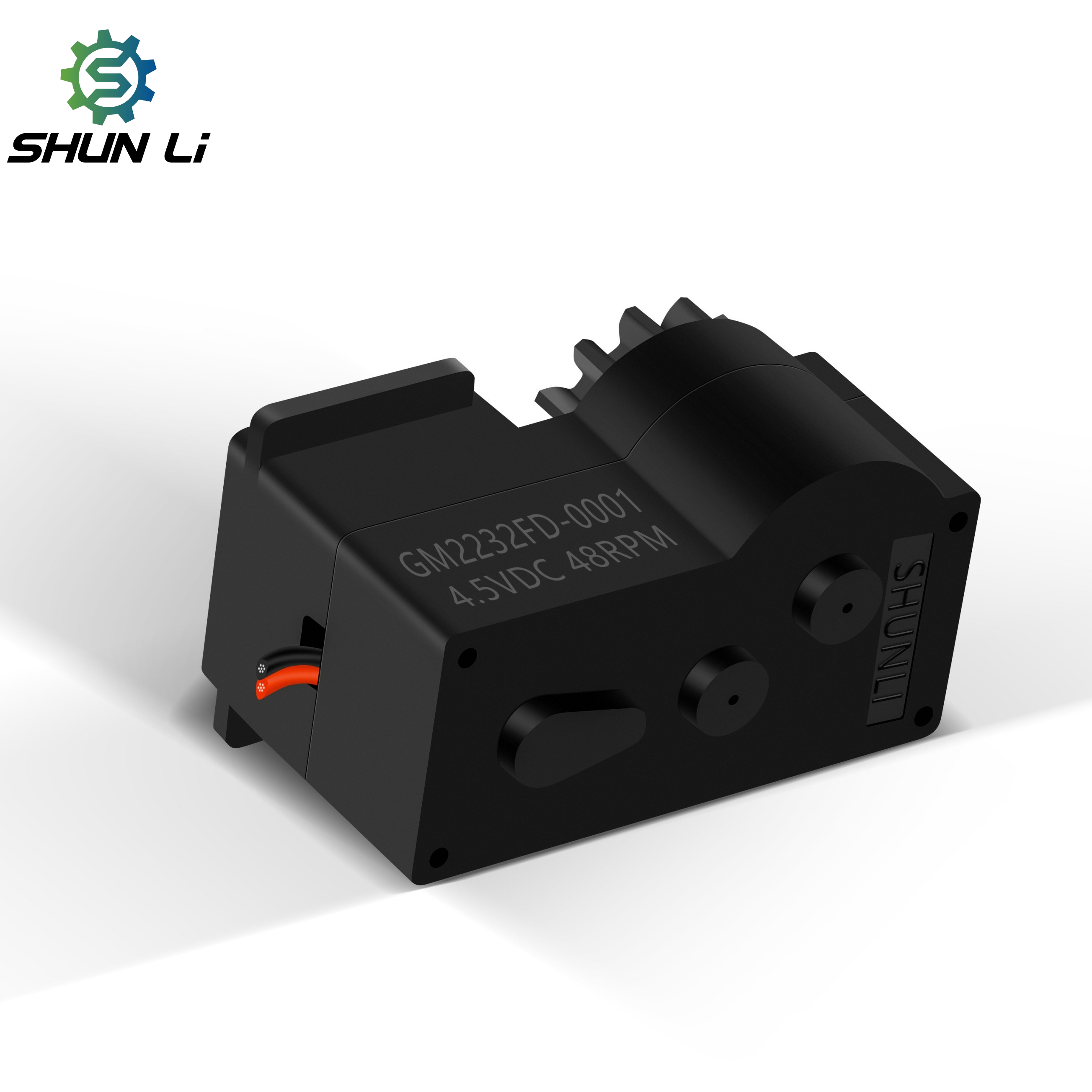

GM2232FD-0001 Gear Motor
Product Model
GM2232FD-0001
Ratio
1:267K
Speed
44RPM-55RPM
Voltage
4.5V
Rated Torque
40 mN.m
Support customization
The Transmission Dimensions And Motor Parameters Can Be Customized

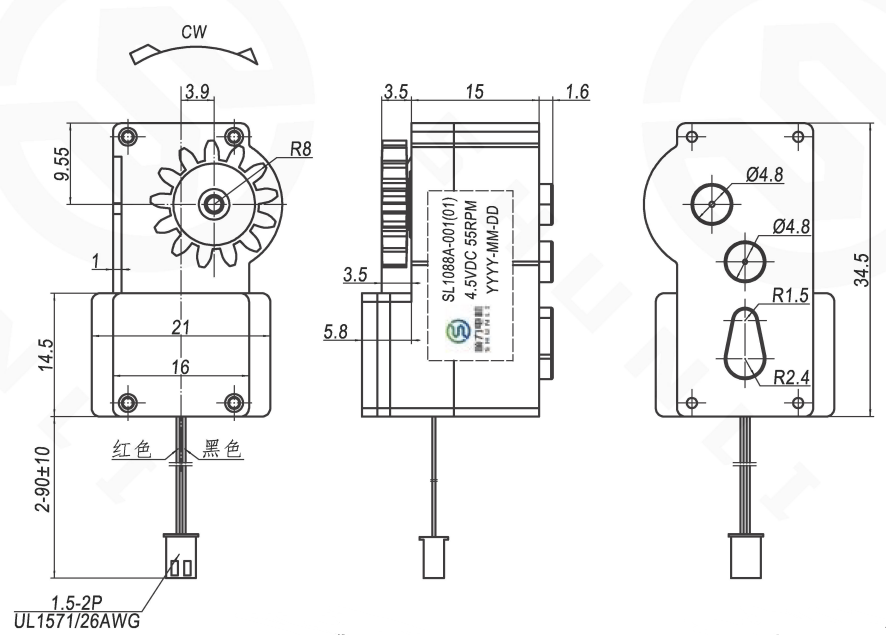

Gearbox Dimensions Specification

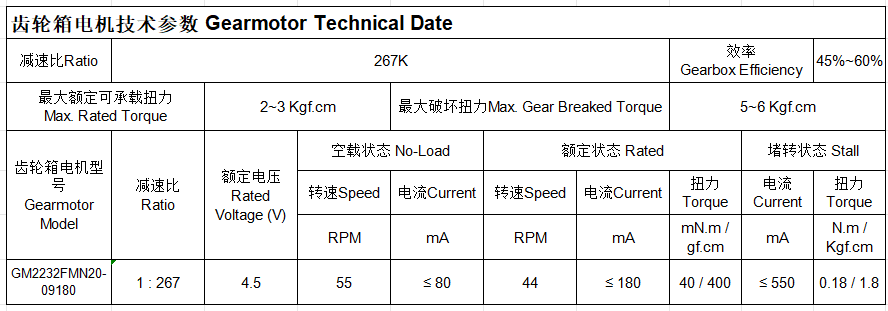

Motor Performance Curves
Gear Motor Manufacturing Process 1
Gear Motor Manufacturing Process 2
Gear Motor Manufacturing Process 3
Gear Motor Quality Check 1
Gear Motor Quality Check 2
Gear Motor Application
Frequently Asked Questions
Q: Are you trading company or manufacturer?
We're factory. We specialize in micro dc motor and dc gear motor for more than 14 years.
Q: What is the payment term for a new customer?
We can draw up an Ali Assurance Order Online for our new customer, which can pay online with Master Card, Visa, etc. Customer also can pay with PayPal or TT etc.
Q: I can't find a suitable motor on your website, can you customize the motor for me?
Yes, we can customize a suitable motor according to our customer's requirements.
Q: Do you have certificates for the motors?
Yes, we have CE, FCC, ISO, etc. If you have other certificate requirements, we can apply for them for you.
Q: How is your Quality Control?
We have professional checking staff on every production line process. After finishing the whole motor, we have the entire quality machine to test the motor. Such as Hardness Tester, 2.5D Image Tester, Salt Spray Chamber, Life Tester, Temperature Test Machine, and Noise tester etc.
Q: Can you send samples for testing before a formal order?
Yes, we can provide samples for quality evaluation and parameter confirmation according to your specifications.
