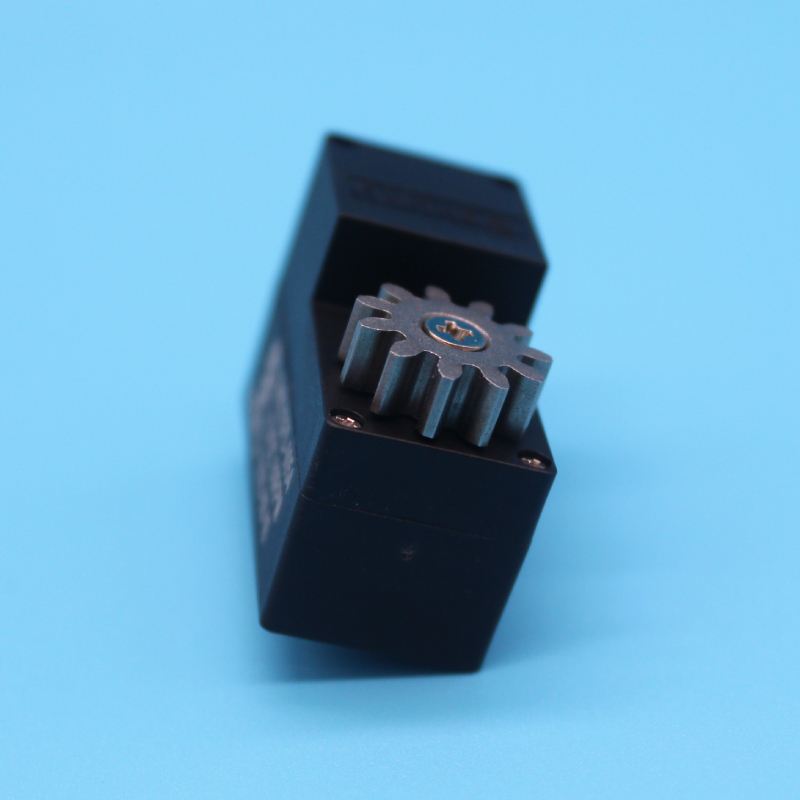

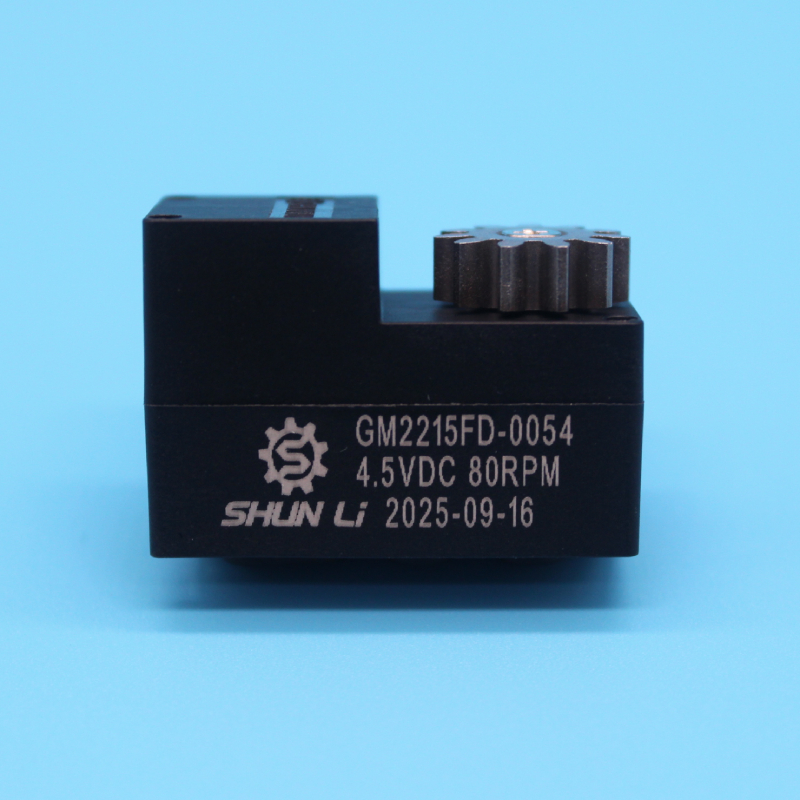

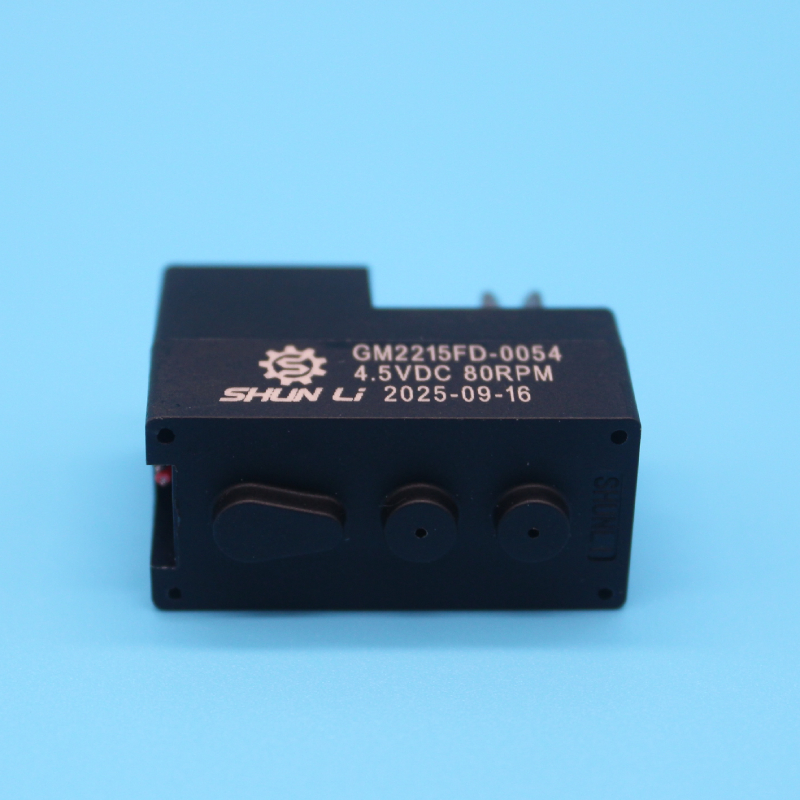

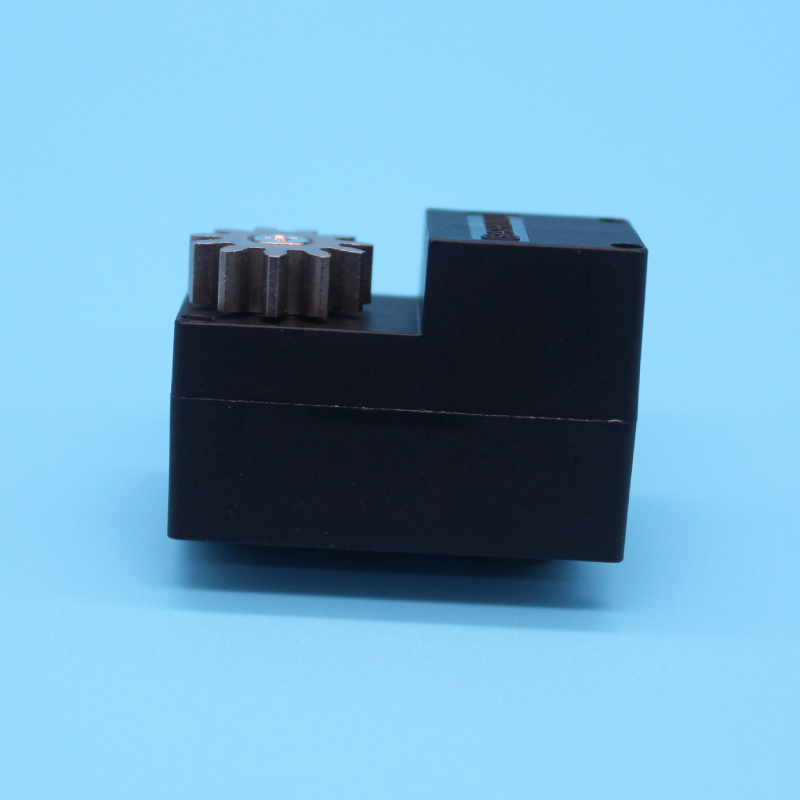

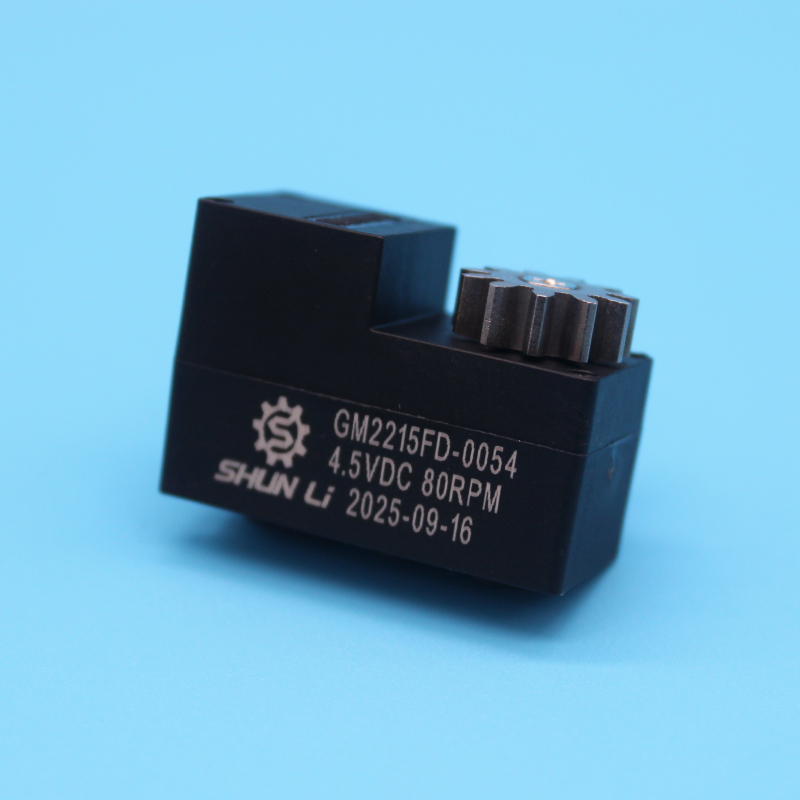

2215 smart lock motor steering gear automatic door lock micro motor gearbox reduction motor
Reference Drawings & Dimensions

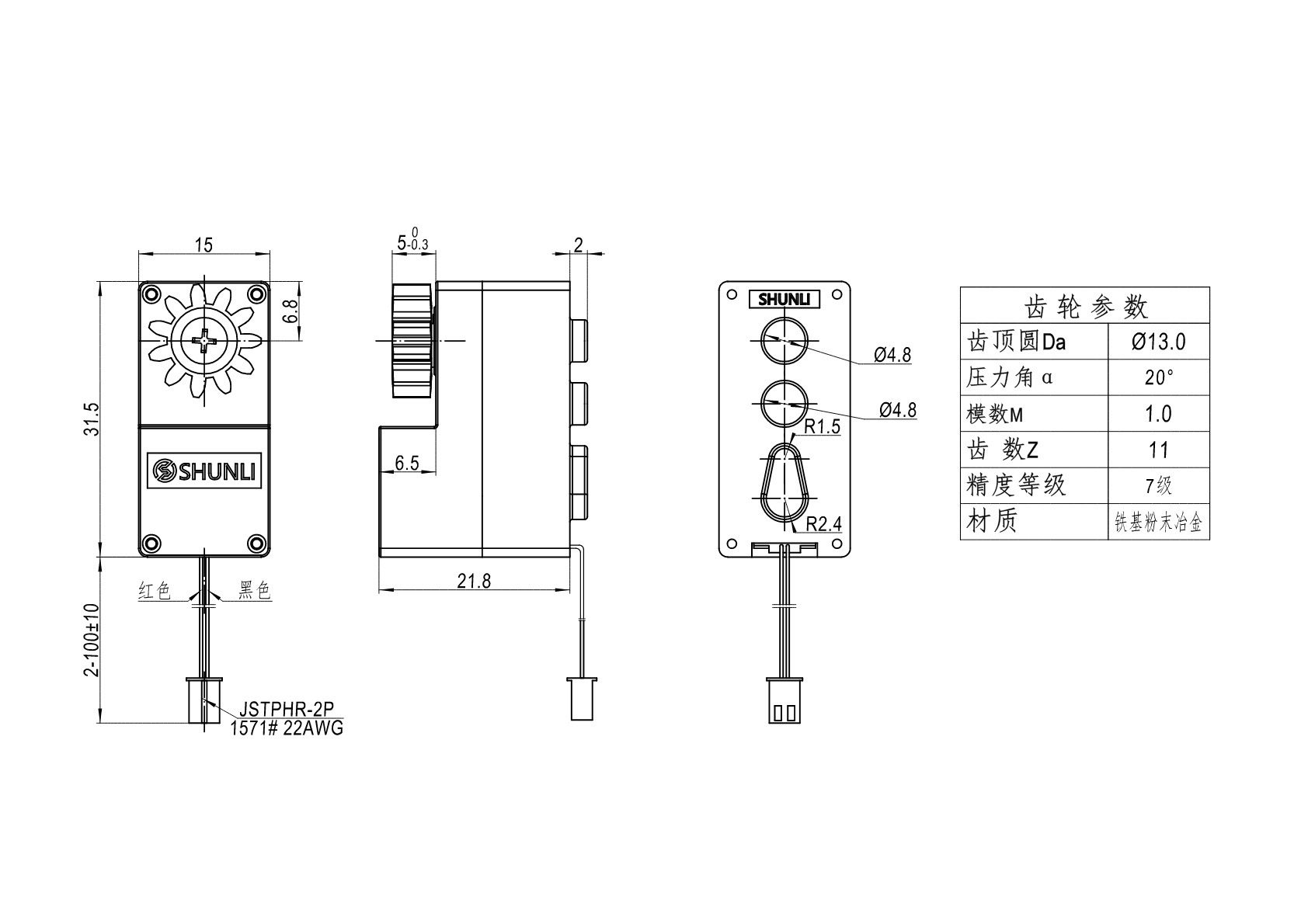

GM2215 Reference Drawing

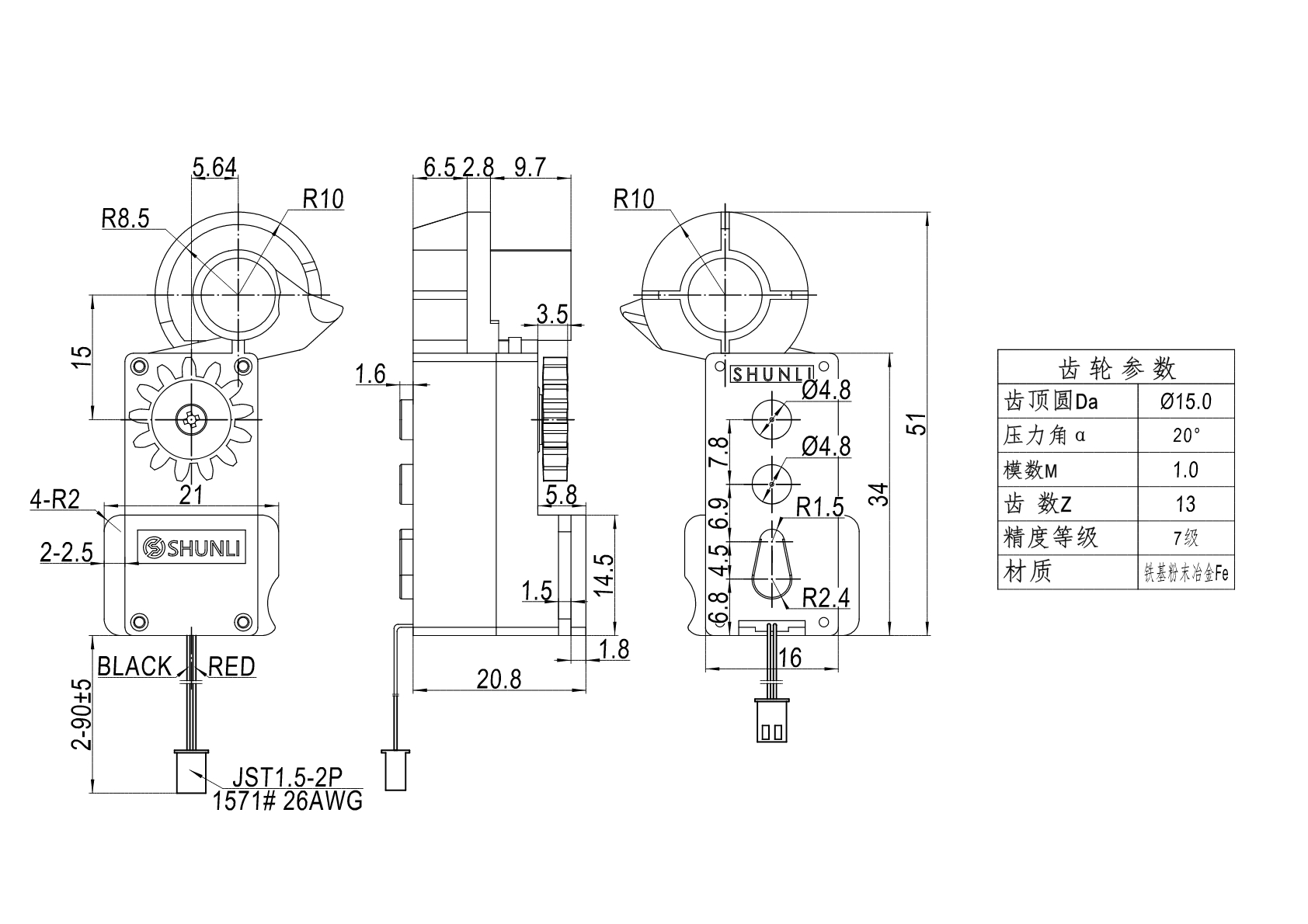

GM2219 Reference Drawing
Reference Datasheet
Gearbox Technical Data
Parameter Item
Specification Details
Gearbox Ratio
199K / 241K / 265K
Max. Rated Torque
1.5 ~ 2.5 Kgf.cm
Max. Gear Breaked Torque
4 ~ 5 Kgf.cm
Gearbox Efficiency
45% ~ 60%
Gearmotor Technical Data
Gearmotor Model
Ratio
Rated Voltage
No-Load
Rated Load
Stall
Speed (RPM)
Current (mA)
Speed (RPM)
Current (mA)
Torque (mN.m / gf.cm)
Current (mA)
Torque (N.m / Kgf.cm)
GM2215FMN20-199K
1 : 199
4.5 VDC
52
≤ 50
40
≤ 120
18 / 180
≤ 350
0.18 / 1.8
GM2222FMN20-230K
1 : 230
58
≤ 78
49
≤ 135
24 / 240
≤ 450
0.2 / 2.0
GM2219FMN20-265K
1 : 241
58
≤ 65
50
≤ 130
24 / 240
≤ 680
0.2 / 2.0
GM2219FMN20-265K
1 : 241
62
≤ 75
51
≤ 140
35 / 350
≤ 750
0.22 / 2.2

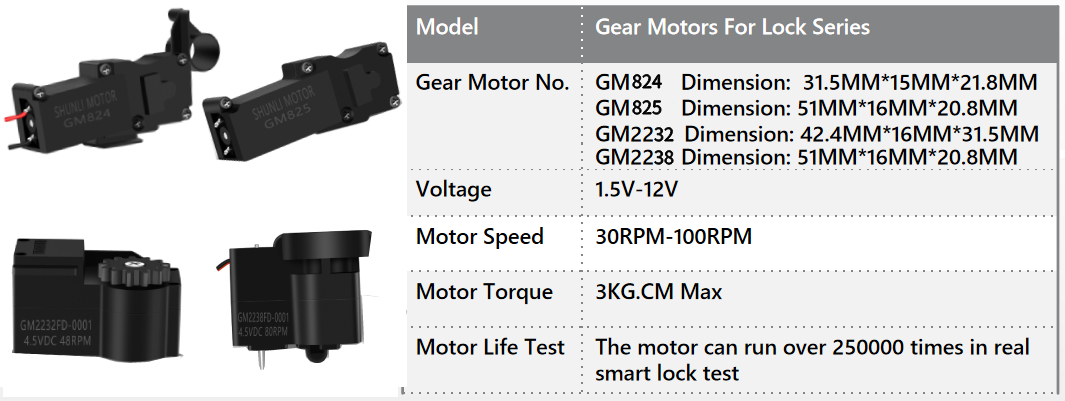

Product Categories & Applications

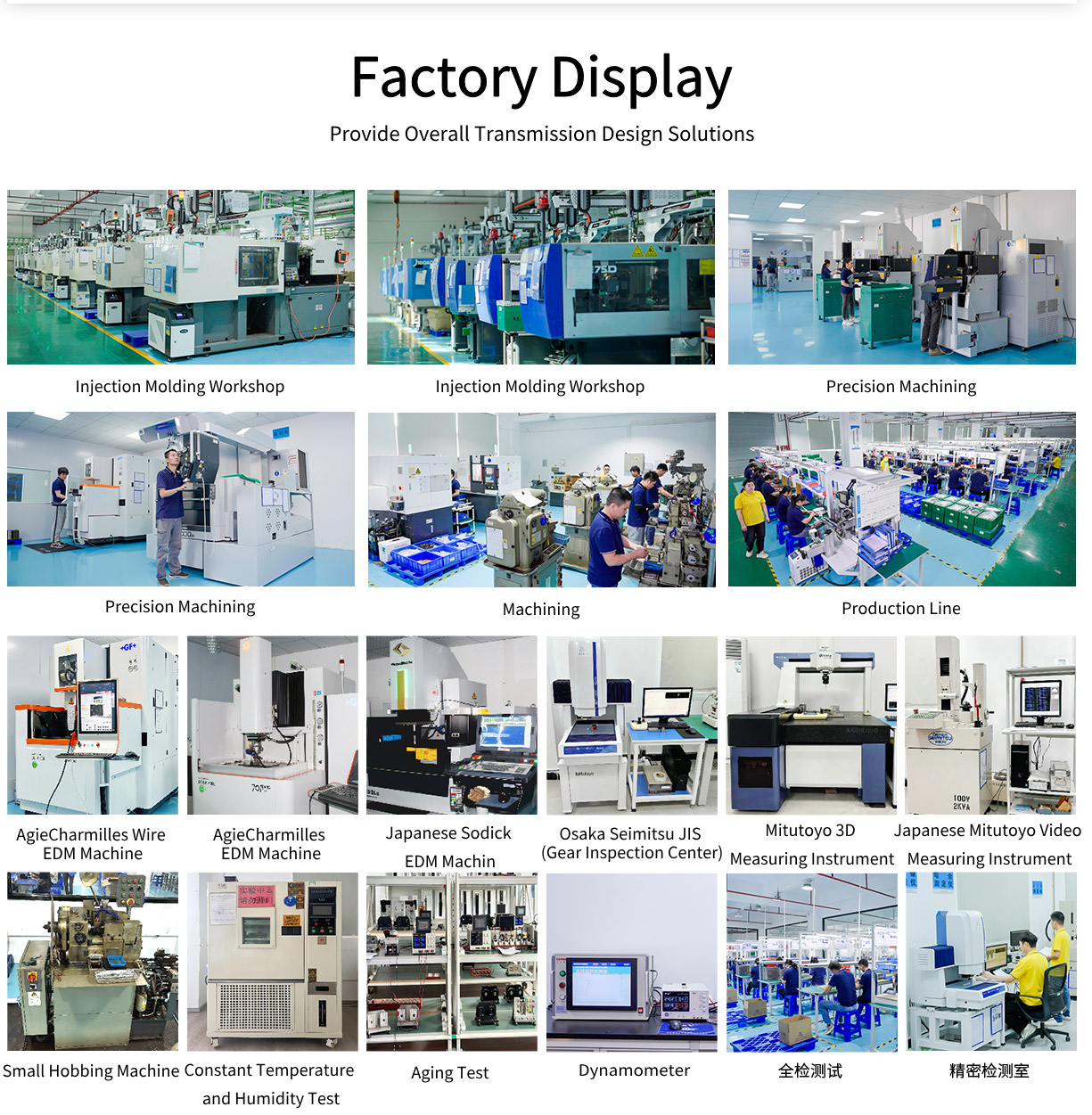

Quality Testing & Control Facilities
Frequently Asked Questions
Are you a trading company or a manufacturer?
We are a factory. We specialize in micro DC motors and DC gear motors with over 14 years of manufacturing experience.
What is the payment term for a new customer?
We can arrange online assurance orders which can be paid using credit cards (Visa, MasterCard, etc.), PayPal, or wire transfer (T/T).
I cannot find a suitable motor on your website, can you customize the motor for me?
Yes, we can customize and manufacture motors according to our customers' technical specifications and requirements.
Do you have certificates for the motors?
Yes, our motors are compliant with CE, FCC, ISO, and other relevant industry standards. We can apply for other specific certificates if needed.
How is your Quality Control managed?
We have QC checkpoints at every stage of the production line. Once assembled, all motors undergo comprehensive machinery testing, including Hardness, 2.5D Image, Salt Spray, Life cycle, Temperature, and Noise tests.
What information is needed to begin a custom motor project?
Please provide your primary performance requirements including operating voltage, no-load and rated speeds, required torque, operational environment, and physical dimension limitations.
