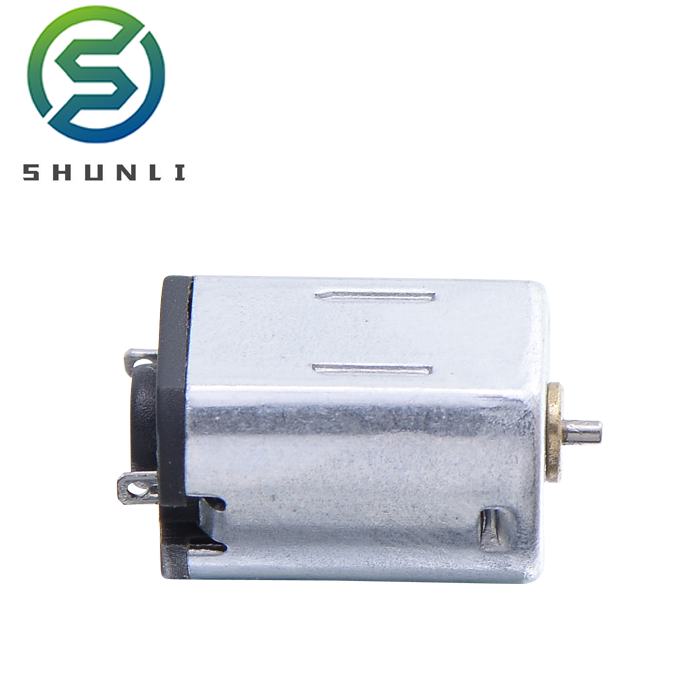

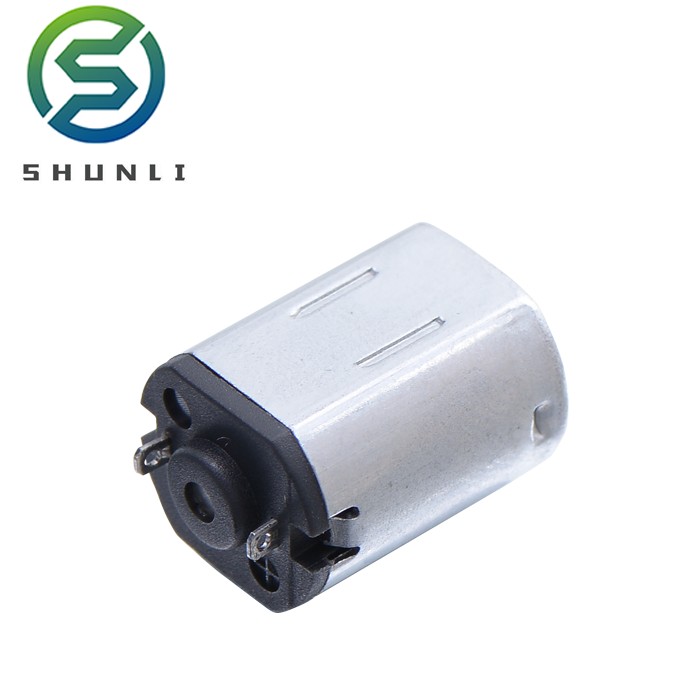

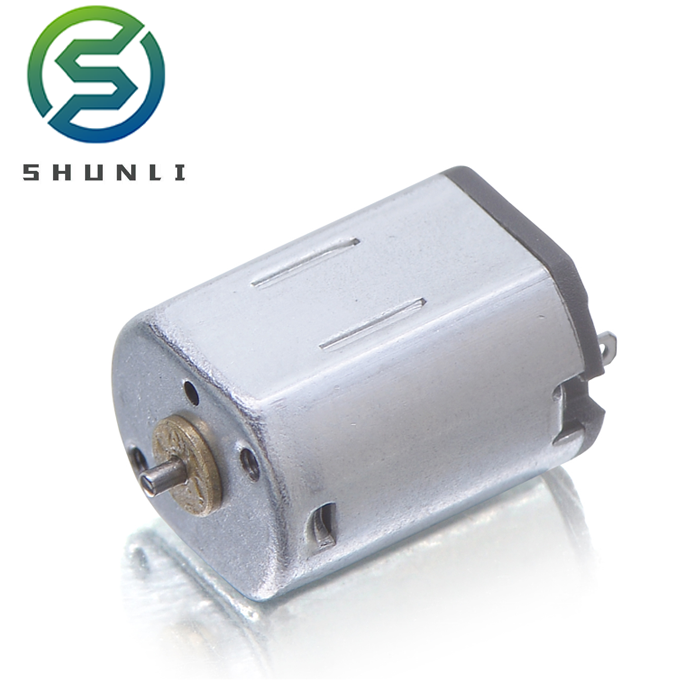

MicroDyn Motor
1 / 4
Our motors have long life, high efficiency and good stability. Insert the drive inside the motor to capture data more accurately.

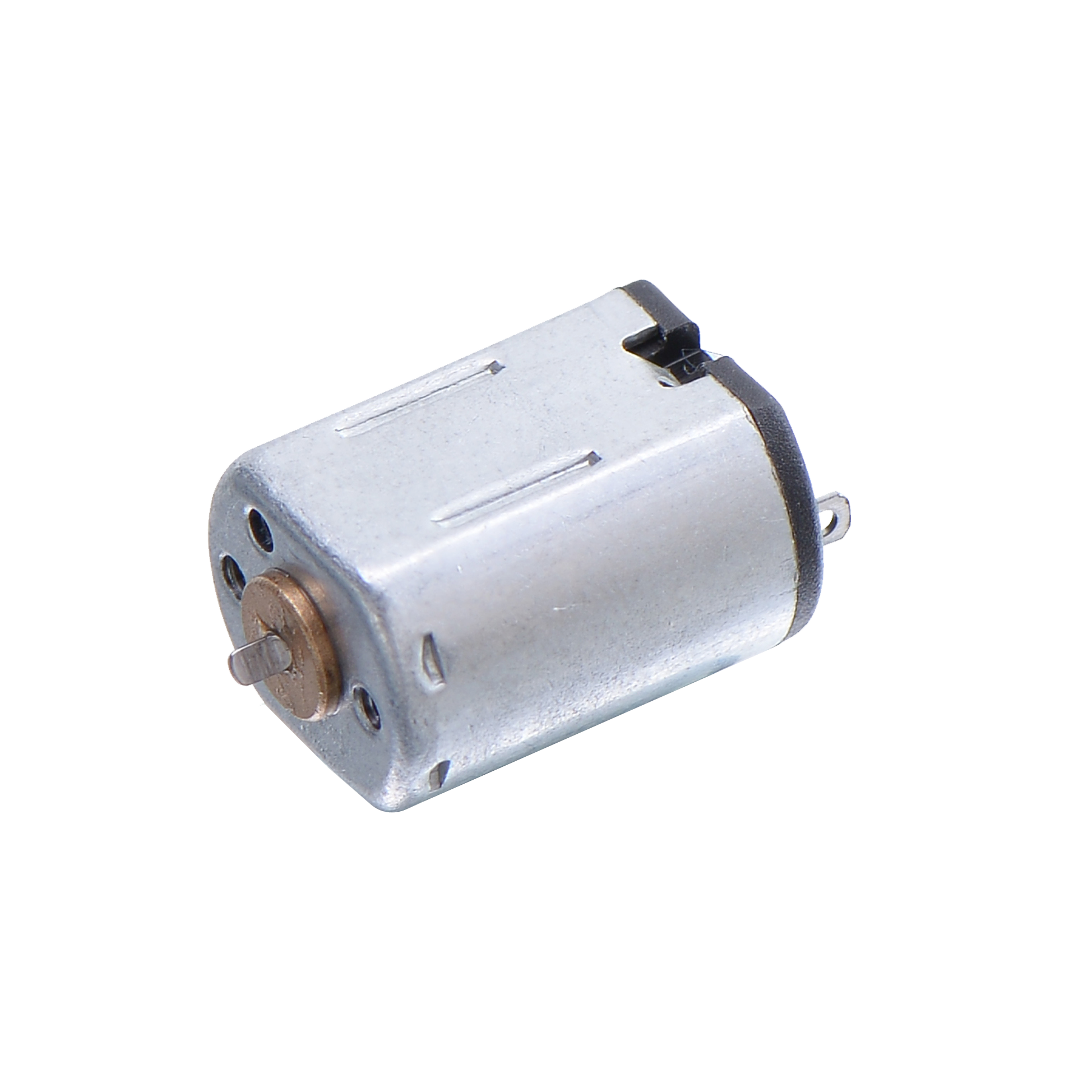

| PMDC MOTOR Technical Data | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| PMDC MOTOR Model | Rated Voltage (V) | No-Load | Rated | Stall | |||||||
| Operating Range | Nominal | Speed | Current | Speed | Current | Torque | Power | Current | Torque | ||
| RPM | mA | RPM | mA | mN.m / gf.cm | W | mA | mN.m / gf.cm | ||||
| FF-N20VA | 05240 | 3.0~12.0 | 12 VDC | 16100 | 15 | 12240 | 60 | 0.3/3 | 0.37 | 210 | 1.2/12 |
| 08260 | 2.0~5.0 | 5 VDC | 14600 | 30 | 11800 | 110 | 0.26/2.6 | 0.31 | 470 | 1.3/13 | |
| FF-N20TA | 2818 | 0.8~1.5 | 12 VDC | 34000 | 70 | 31000 | 1140 | 0.2/2 | 0.64 | 6000 | 1.6/16 |
We are a factory specialize in producing motors more than 14 years, professional R&D team mature management will bring you a pleasant shopping experience.
In order to confirm quality, from we receive material to shipment to be carefully checked every step of the way. Quality is our basis of our development.
We're factory. We specialize in micro dc motor and dc gear motor for more than 14 years.
We can draw up an Ali Assurance Order Online for our new customer, which can pay online with Master Card, Visa, etc. Customer also can pay with PayPal or TT etc.
Yes, we can customize a suitable motor according to our customer's requirements.
Yes, we have CE, FCC, ISO, etc. If you have the other certificates requirement, we can apply it for you.

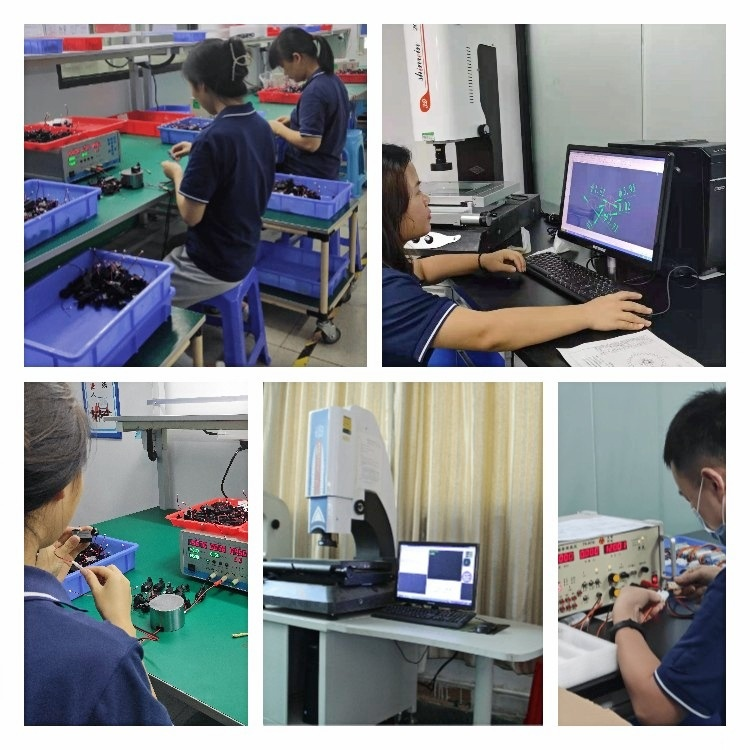

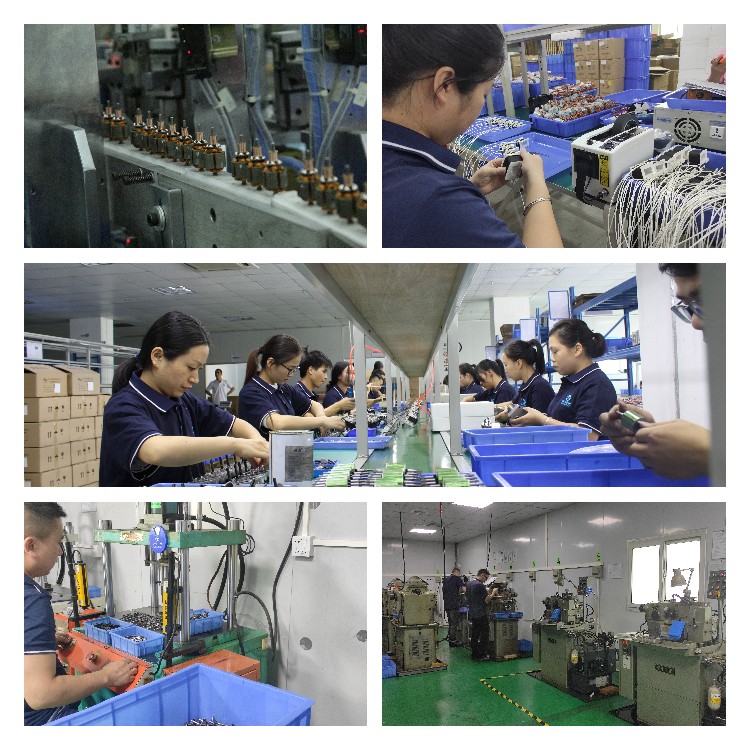

We have professional checking staff on every production line process. After finishing the whole motor, we have the entire quality machine to test the motor. Such as Hardness Tester, 2.5D Image Tester, Salt Spray Chamber, Life Tester, Temperature Test Machine, and Noise tester etc.
