6V 12V 18V DC Motor RS 550 545 555 High RPM Speed DC Motor 15000RPM
6V 12V 18V DC Motor RS 550 545 555 High RPM Speed DC Motor 15000RPM
6V 12V 18V DC Motor RS 550 545 555 High RPM Speed DC Motor 15000RPM
6V 12V 18V DC Motor RS 550 545 555 High RPM Speed DC Motor 15000RPM
6V 12V 18V DC Motor RS 550 545 555 High RPM Speed DC Motor 15000RPM
1 / 5
6V 12V 18V DC Motor RS 550 545 555 High RPM Speed DC Motor 15000RPM
6V 12V 18V DC Motor RS 550 545 555 High RPM Speed DC Motor 15000RPM
6V 12V 18V DC Motor RS 550 545 555 High RPM Speed DC Motor 15000RPM
6V 12V 18V DC Motor RS 550 545 555 High RPM Speed DC Motor 15000RPM
6V 12V 18V DC Motor RS 550 545 555 High RPM Speed DC Motor 15000RPM

6V 12V 18V DC Motor RS 550 545 555 High RPM Speed DC Motor 15000RPM

Send Inquiry

Product Description

6V 12V 18V DC Motor RS 550 545 555 High RPM Speed DC Motor 15000RPM
Application
6V 12V 18V DC Motor RS 550 545 555 High RPM Speed DC Motor 15000RPM
6V 12V 18V DC Motor RS 550 545 555 High RPM Speed DC Motor 30000RPM
Product Details
6V 12V 18V DC Motor RS 550 545 555 High RPM Speed DC Motor 15000RPM
Motor Customized Specification, Please contact us for details.
PMDC MOTOR Technical Data
Model Rated Voltage(V) No-Load Rated
Operating Range Nominal Speed Current Speed Current Torque Power
RPM A RPM A mN.m / gf.cm W
RS-550H 23128R 6.0~24.0 24VDC 4500 0.1 3932 0.39 25.7/262 10.6
6034 6.0~12.0 12VDC 16000 1.12 13613 4.96 25.6/261.3 40.36
RS-555H 3540 6.0~12.0 12VDC 7800 0.3 6708 1.84 21.9/223.4 15.35
23100 6.0~24.0 24VDC 7000 0.14 6004 0.77 19.2/195.8 12.09
RS - 545 A Specification
6V 12V 18V DC Motor RS 550 545 555 High RPM Speed DC Motor 15000RPM

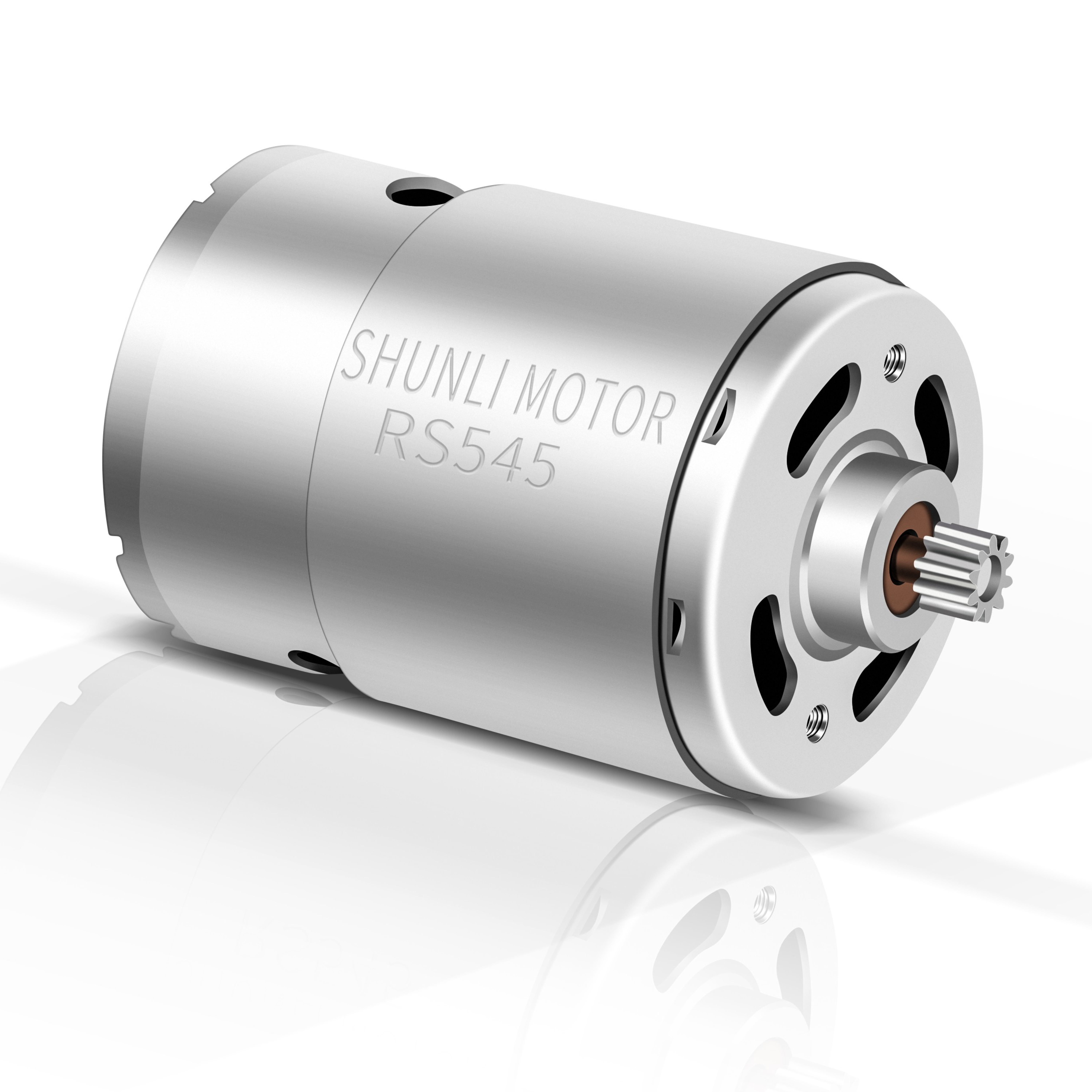

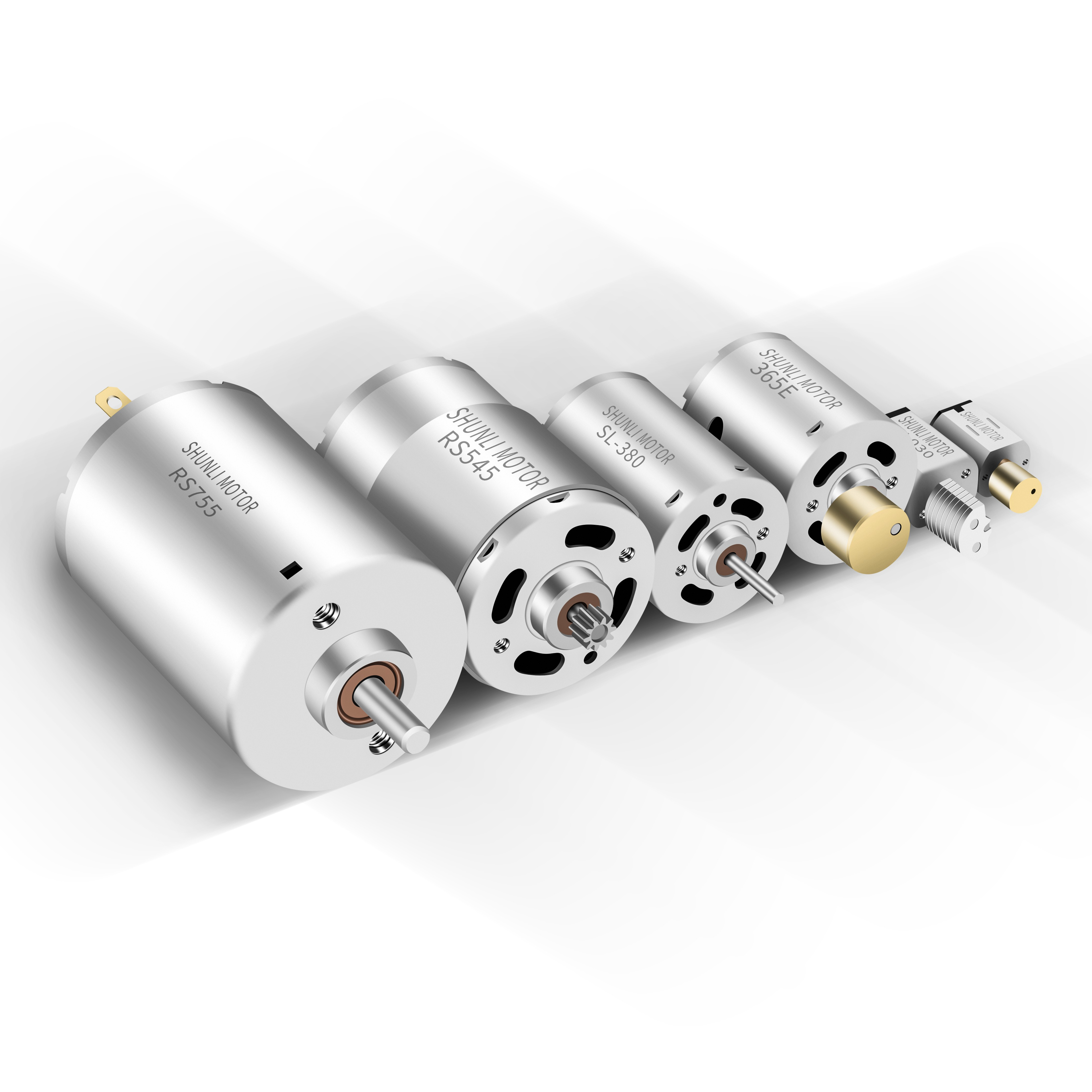

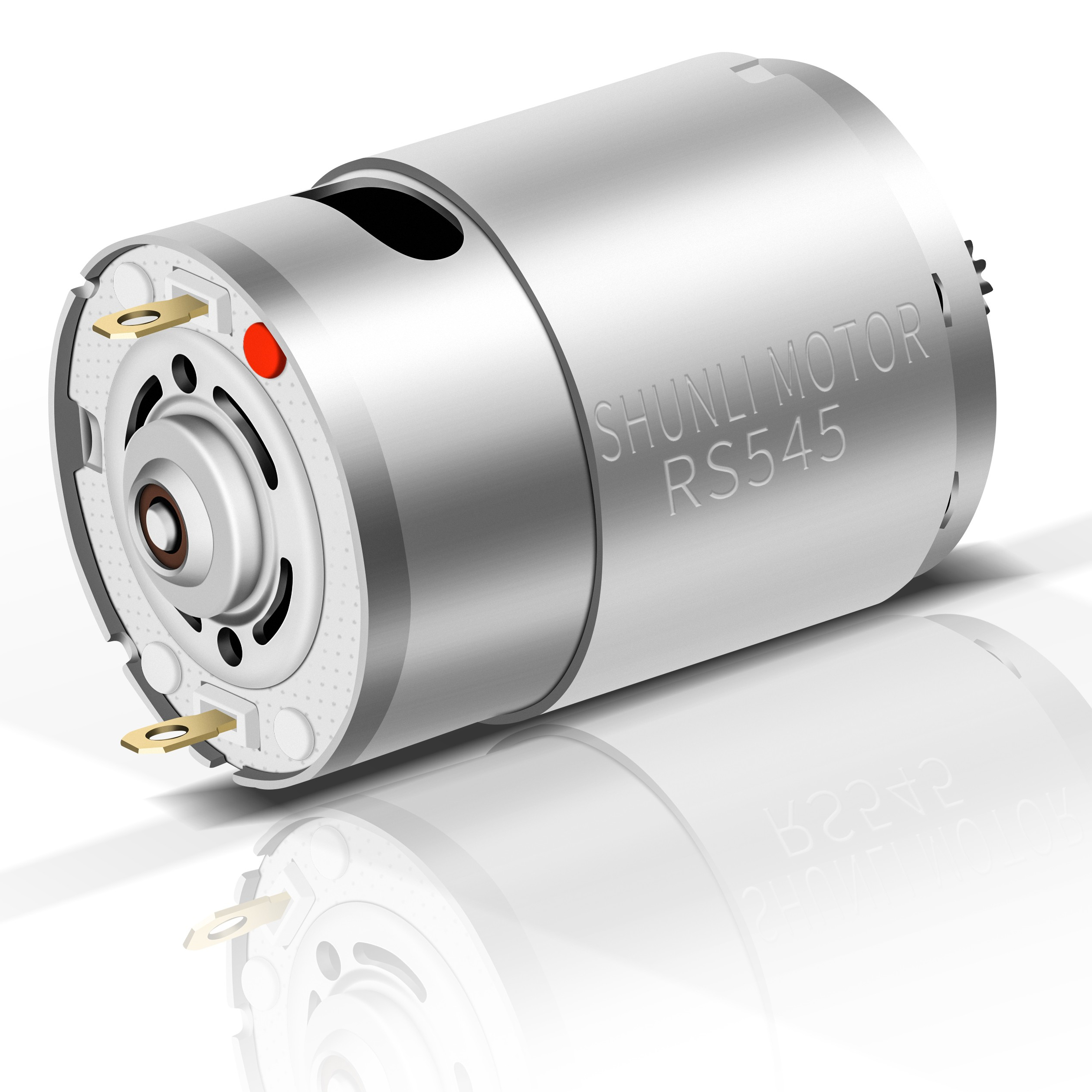

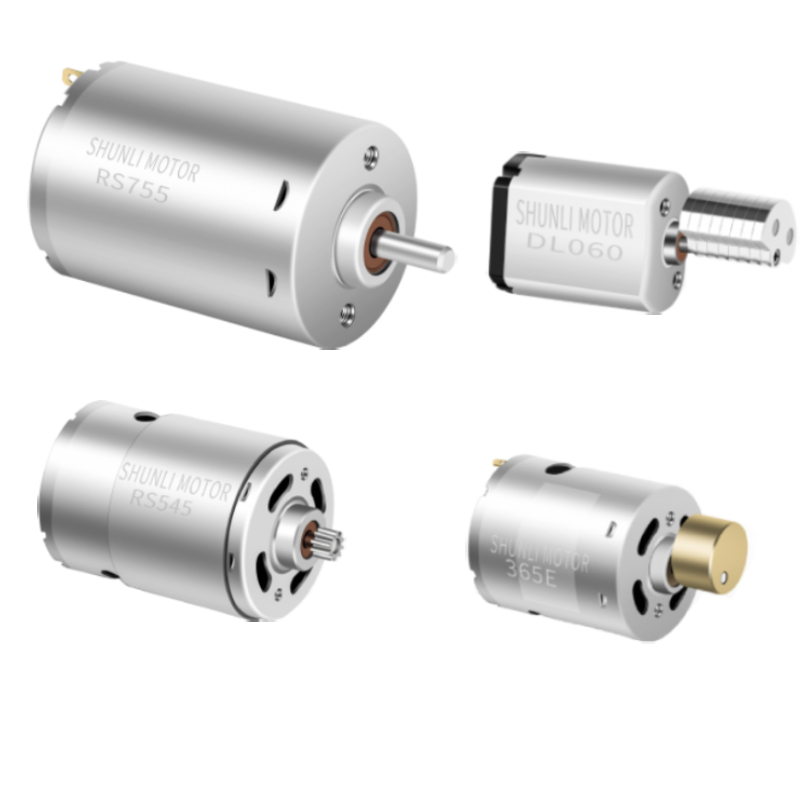

Product Gallery & Dimensions
6V 12V 18V DC Motor RS 550 545 555 High RPM Speed DC Motor 15000RPM
6V 12V 18V DC Motor RS 550 545 555 High RPM Speed DC Motor 15000RPM
6V 12V 18V DC Motor RS 550 545 555 High RPM Speed DC Motor 15000RPM
6V 12V 18V DC Motor RS 550 545 555 High RPM Speed DC Motor 15000RPM
6V 12V 18V DC Motor RS 550 545 555 High RPM Speed DC Motor 15000RPM
6V 12V 18V DC Motor RS 550 545 555 High RPM Speed DC Motor 15000RPM
6V 12V 18V DC Motor RS 550 545 555 High RPM Speed DC Motor 15000RPM
6V 12V 18V DC Motor RS 550 545 555 High RPM Speed DC Motor 15000RPM
Frequently Asked Questions (FAQ)
What are the typical operating voltages for these DC motors?
The RS-545, RS-550, and RS-555 series DC motors support a wide operating voltage range, commonly from 6.0V to 24.0V DC. Please refer to the technical specs table for details on nominal configurations.
What is the maximum RPM attainable by these motors?
These high RPM speed DC motors can achieve speeds up to 15,000 RPM, 16,000 RPM, or even customized speed curves up to 30,000 RPM depending on the voltage and model setup.
Are customized motor specifications available?
Yes, we can accommodate customized specifications regarding operating voltage, speed parameters, current limit, torque values, and shaft designs to match your specific requirements.
What are the primary applications of RS series PMDC motors?
These motors are widely used in power tools, automotive electronics, smart home appliances, office automation, personal care electronics, and robotic actuators requiring high torque and high rotational speed.
How do I choose the correct motor model (RS-545 vs RS-550 vs RS-555)?
Selection depends on your mechanical load, operational speed range, efficiency targets, and space dimensions. Refer to the PMDC technical data sheet above for current draw, power rating, and torque capabilities.
