Product Description

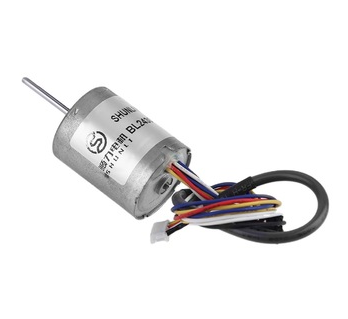

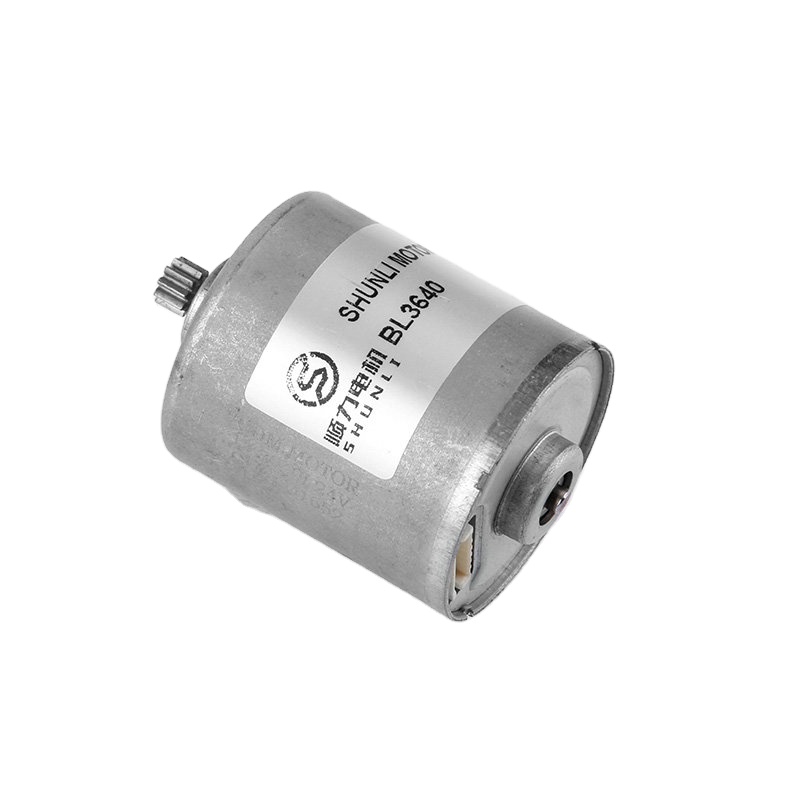

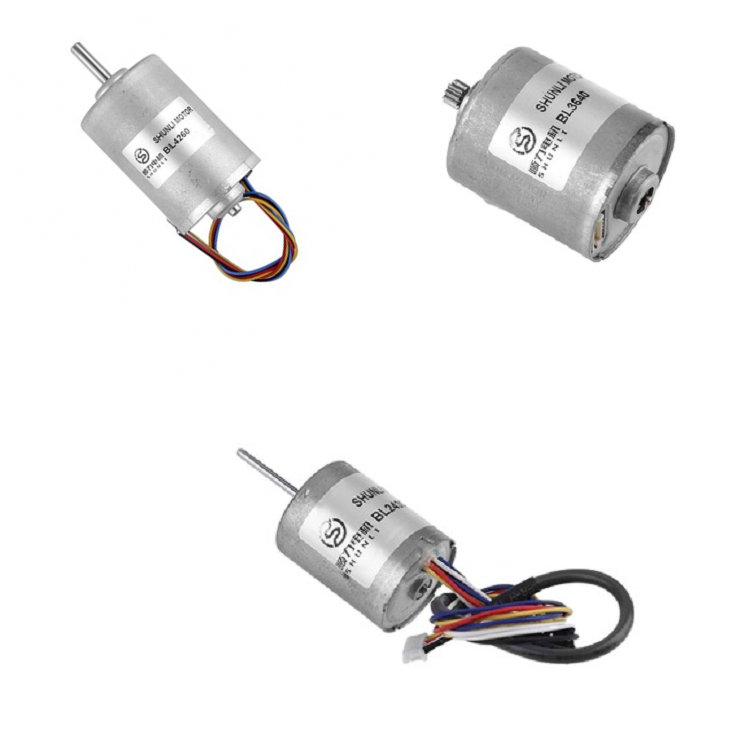

12V 18V 24V high speed 20000 RPM 30000RPM 40000 RPM 100 G.CM 150 G.CM 36 mm Brushless DC motor for fan
Product Details
💡
Motor Customized Specification, Please Contact Us.
Reference Technical Specification
BLDC MOTOR Terminations
| PIN NO. |
PIN Arrangement |
| 1 |
VCC |
| 2 |
FG |
| 3 |
CW/CCW |
| 4 |
GND |
| 5 |
PWM |
Reference Datasheet
Frequently Asked Questions (FAQ)
What are the input voltage options for this brushless DC motor?
This high-speed motor supports versatile input voltages including 12V, 18V, and 24V, making it suitable for a wide range of fan applications.
What is the maximum speed capacity of the motor?
The motor is designed for high-performance operations, offering speed configurations of 20,000 RPM, 30,000 RPM, and up to 40,000 RPM.
Can the specifications of the 36 mm motor be customized?
Yes, customized motor specifications are available to meet your precise technical requirements. Please reach out to share your custom requirements.
What functions do the 5 pins of the BLDC termination serve?
The 5 pins provide crucial control configurations: Pin 1 (VCC), Pin 2 (FG speed signal), Pin 3 (CW/CCW rotation control), Pin 4 (GND), and Pin 5 (PWM speed adjustment).
What is the torque capability of this high-speed motor?
This motor delivers stable and powerful torque outputs ranging from 100 G.CM to 150 G.CM, optimized for cooling and ventilation systems.
What is the size and dimension of this motor?
The motor features a compact outer diameter of 36 mm, making it suitable for space-constrained fan installations requiring high-speed output.
