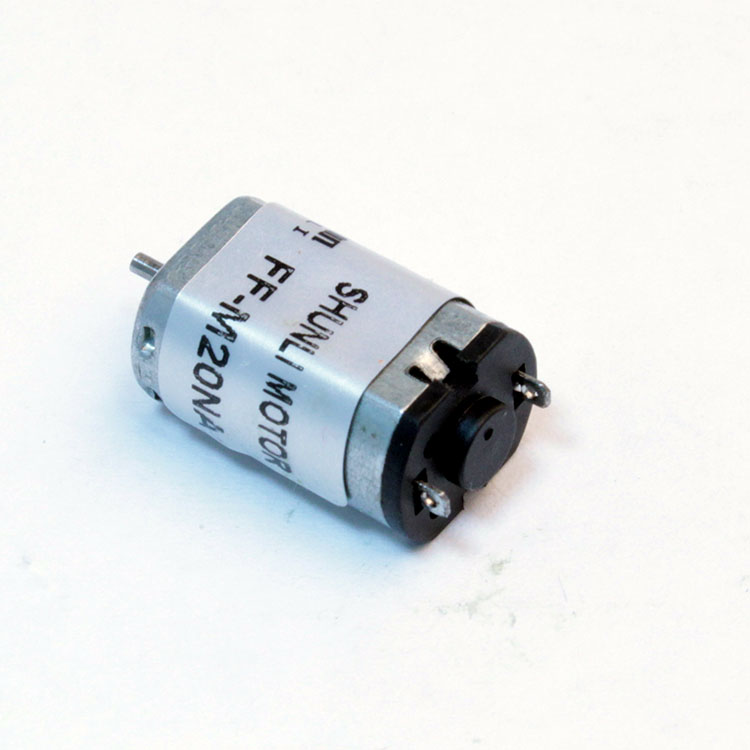

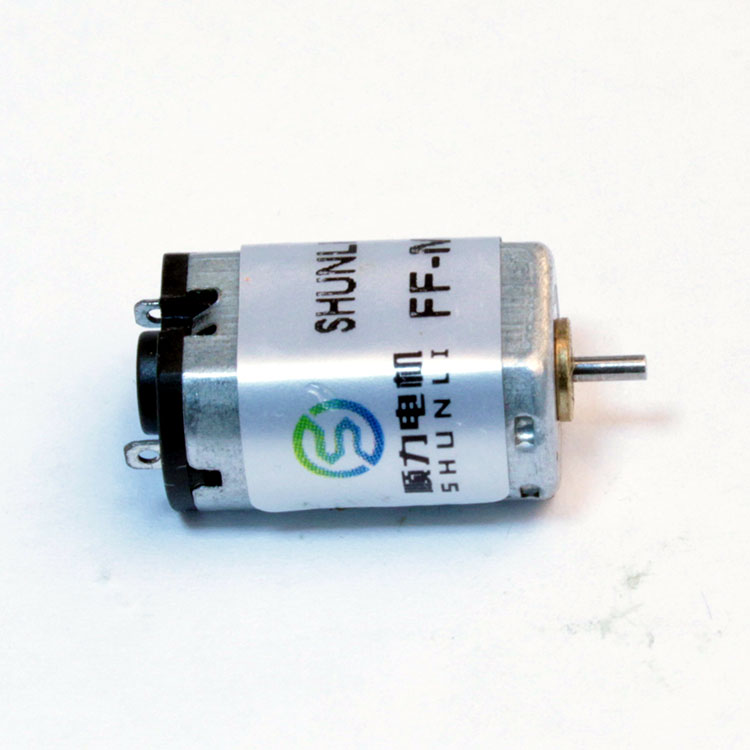

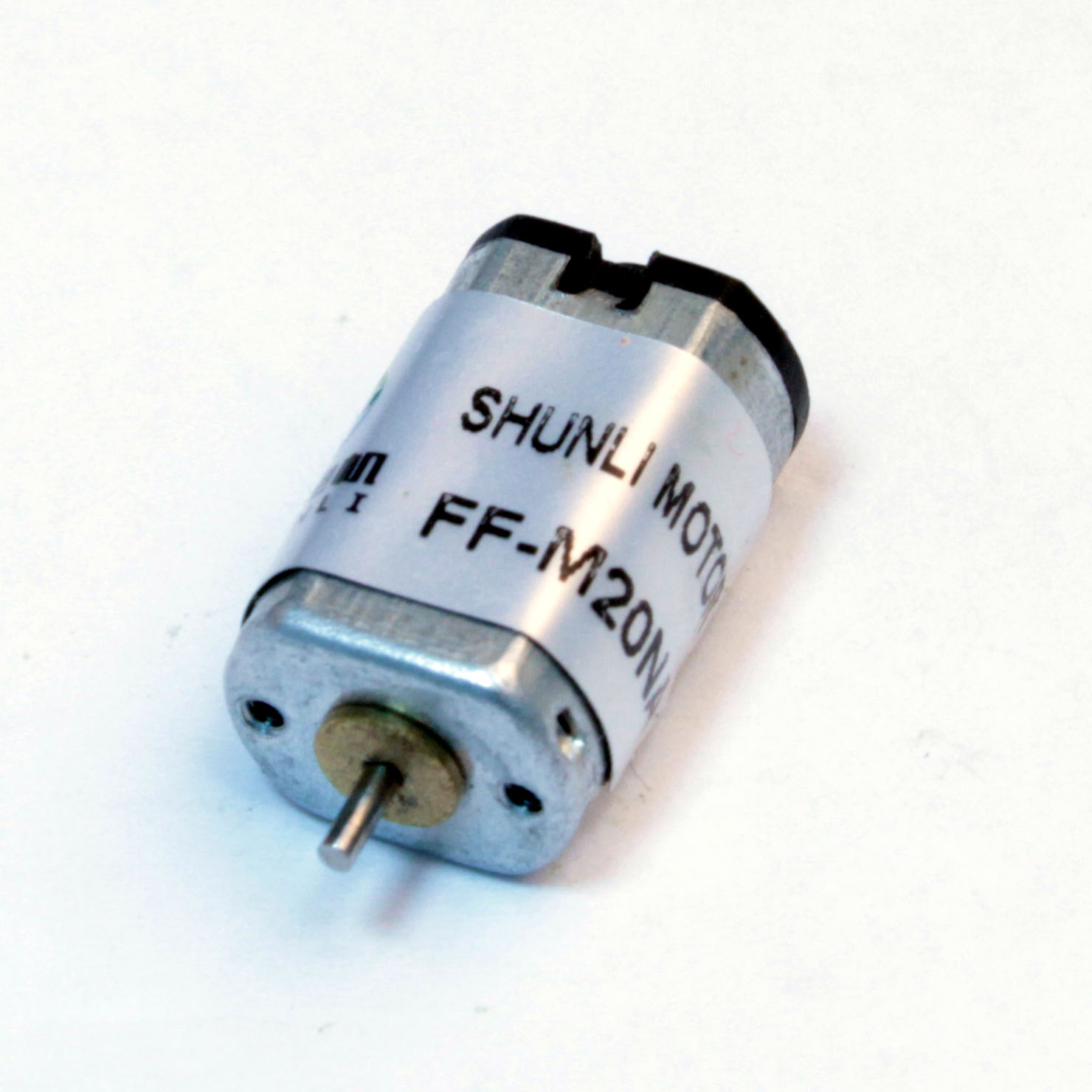

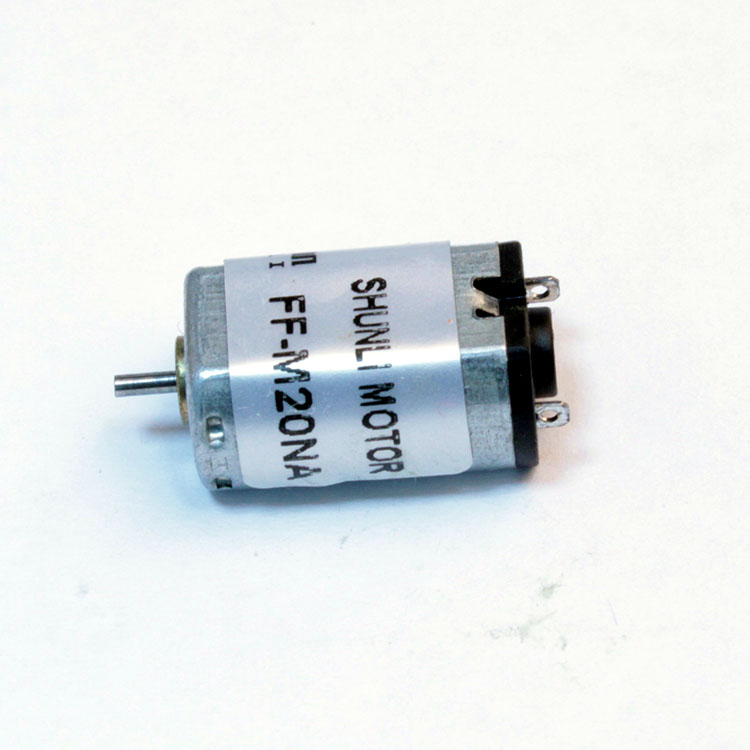

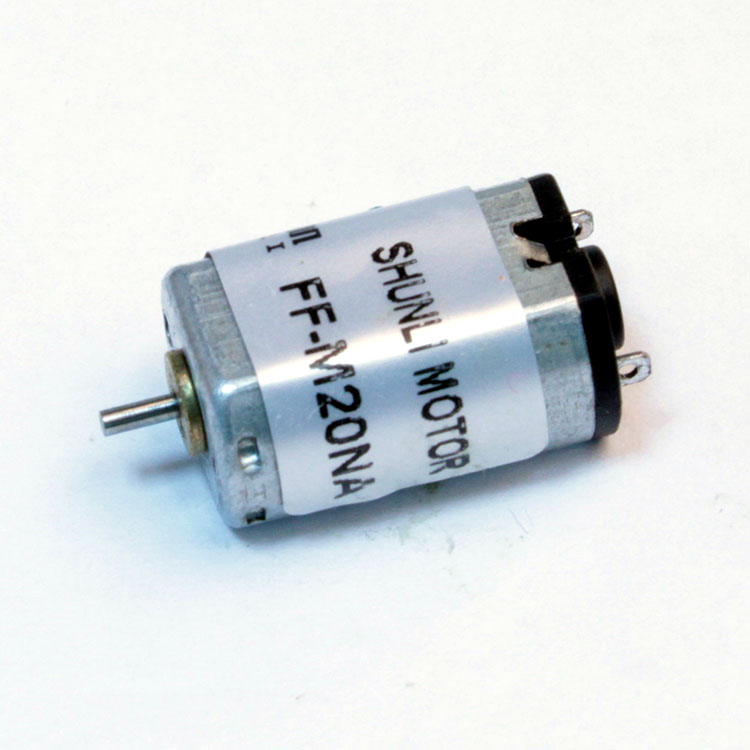

8mm *10mm M10 Toys Dc Mini Small Motor 1.5v-6v

Low noise 2.4v 3.6v dc brushed motor door lock

Our motors have long life, high efficiency and good stability. Insert the drive inside the motor to capture data more accurately.

Product Description

PMDC MOTOR Technical Data
PMDC MOTOR Model		Rated Voltage (V)		No-Load		Rated				Stall
		Operating Range	Nominal	Speed	Current	Speed	Current	Torque	Power	Current	Torque
		Operating Range	Nominal	RPM	mA	RPM	mA	mN.m / gf.cm	W	mA	mN.m / gf.cm
FF-M10VA	06230	2.0~5.0	4.5 VDC	23200	0.065	17500	0.14	0.098/1	0.2	0.39	0.39 / 4
FF-M10VA	09120	1.0~3.0	1.5 VDC	14000	0.12	6000	0.3	0.157/1.6	0.08	0.25	0.25 / 2.6

Refer to the technical data above to know more parameters.

Application

Certifications

Why Choose Us

Production Capacity: We are a factory specializing in producing motors for more than 14 years. Our professional R&D team and mature management will bring you a pleasant experience.

Quality Control: In order to confirm quality, every step of the way is carefully checked from materials receipt to shipment. Quality is the basis of our development.

Our Services

We possess high credibility.

100% on-time delivery rate ensures your product arrives timely.

Standard samples produced within 2 weeks. Customized samples produced within 3 weeks.

Timely response, your messages will be replied to within 2 hours.

Frequently Asked Questions

1. Are you a trading company or manufacturer?

We are a factory. We specialize in micro DC motors and DC gear motors for more than 14 years.

2. What is the payment term for a new customer?

We can draw up an Online Assurance Order for our new customers, which can be paid online with Master Card, Visa, etc. Customers can also pay with PayPal, TT, and other methods.

3. I can't find a suitable motor on your website, can you customize the motor for me?

Yes, we can customize a suitable motor according to our customer's specific requirements.

4. Do you have certificates for the motors?

Yes, we have CE, FCC, ISO, etc. If you have other certification requirements, we can apply for them for you.

5. How is your Quality Control?

We have professional checking staff on every production line process. After finishing the whole motor, we use dedicated testing machines to inspect the motor, including Hardness Testers, 2.5D Image Testers, Salt Spray Chambers, Life Testers, Temperature Test Machines, and Noise testers.

6. How can I get a quotation for my project?

You can send us your specific motor requirements, including voltage, speed, torque, and dimensions. Our engineering team will evaluate your needs and provide a detailed quotation promptly.
