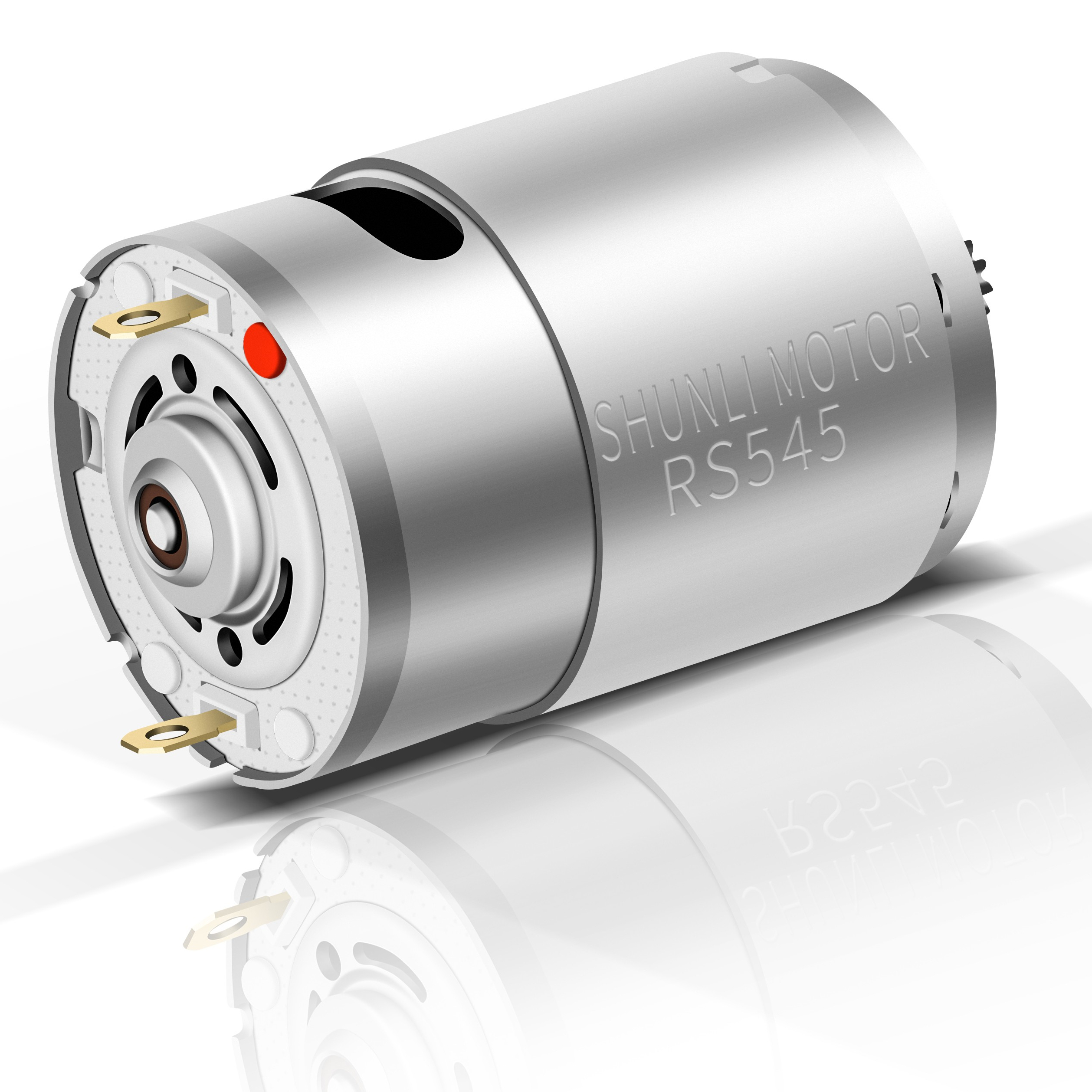

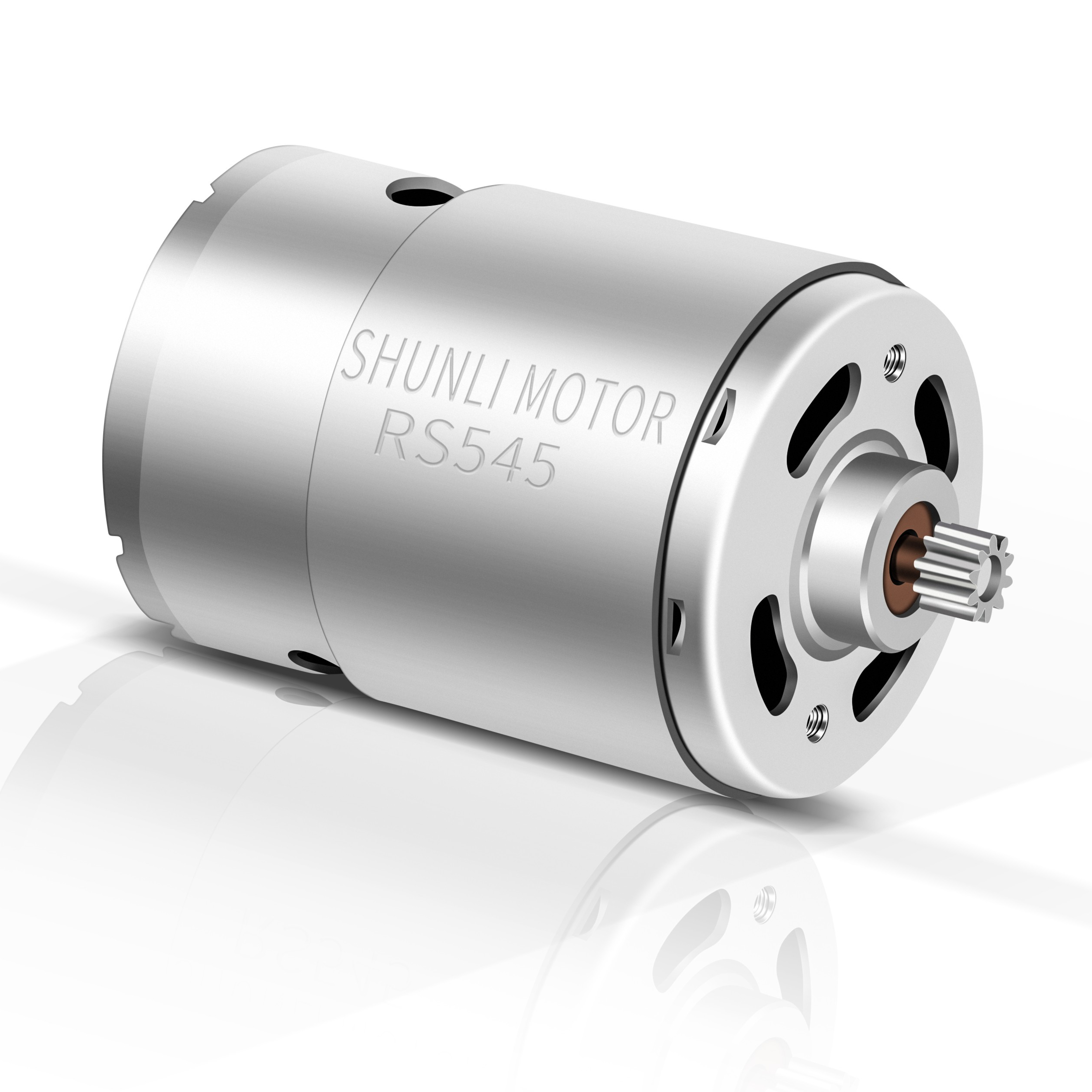

6v 12v 24v Micro Motor Electric Car Motor Micro Dc Motor

Send Inquiry

Product Description

6v 12v 24v micro motor electric car motor micro dc motor

Product Details

Motor Customized Specification

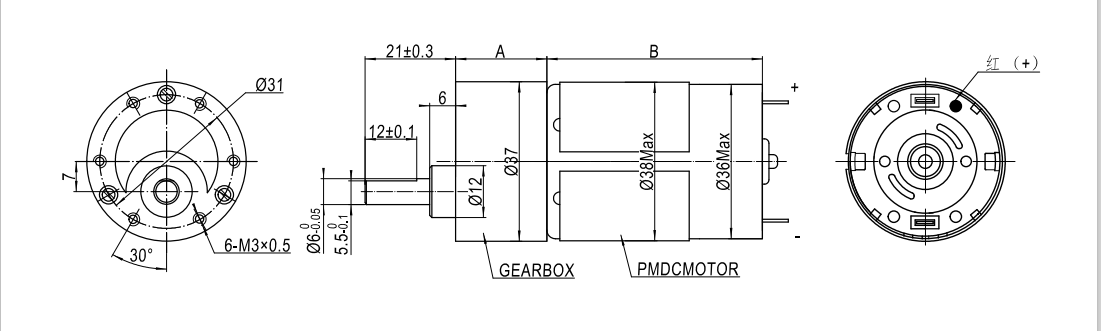

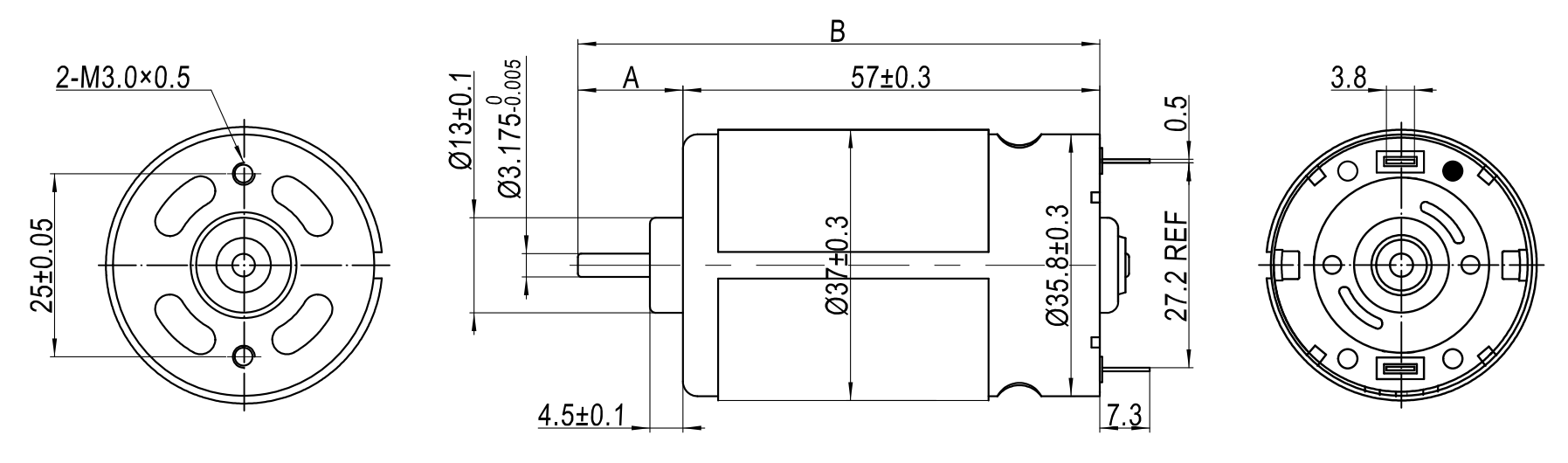

Reference Drawing

RS - 545 A

RS - 555 A

RS - 575 A

The length of shaft can be customized

Reference Datasheet

PMDC MOTOR Technical Data
Model		Rated Voltage(V)		No-Load		Rated				Stall
		Operating Range	Nominal	Speed	Current	Speed	Current	Torque	Power	Current	Torque
		Operating Range	Nominal	RPM	A	RPM	A	mN.m / gf.cm	W	A	mN.m / gf.cm
RS-550H	23128R	6.0~24.0	24VDC	4500	0.1	3932	0.39	25.7/262	10.6	4.8	204/2080
RS-550H	6034	6.0~12.0	12VDC	16000	1.12	13613	4.96	25.6/261.3	40.36	48.89	281.4/2870
RS-555H	3540	6.0~12.0	12VDC	7800	0.3	6708	1.84	21.9/223.4	15.35	11.31	156/1591
RS-555H	23100	6.0~24.0	24VDC	7000	0.14	6004	0.77	19.2/195.8	12.09	4.2	124.5/1270

Recommend Product

Frequently Asked Questions

Q1: What voltage options are available for these micro DC motors?

A: These micro DC motors are available in standard voltage configurations of 6V, 12V, and 24V to suit different power requirements.

Q2: Can the shaft length of the motor be customized?

A: Yes, we offer customized options for the motor shaft length to fit your specific application designs.

Q3: What are the typical applications for the RS-550H and RS-555H series?

A: These motors are commonly used in electric car components, power tools, precision machinery, smart home devices, and automotive applications.

Q4: Are the motor specifications fully customizable?

A: Yes, custom parameters such as rated voltage, speed, current, and torque can be tailored according to your technical demands.

Q5: How do I select the right motor model from the datasheet?

A: You can evaluate key parameters like operating voltage range, no-load speed, rated torque, and stall current to find a model that aligns with your mechanical load requirements.
