Motor Customized Specification

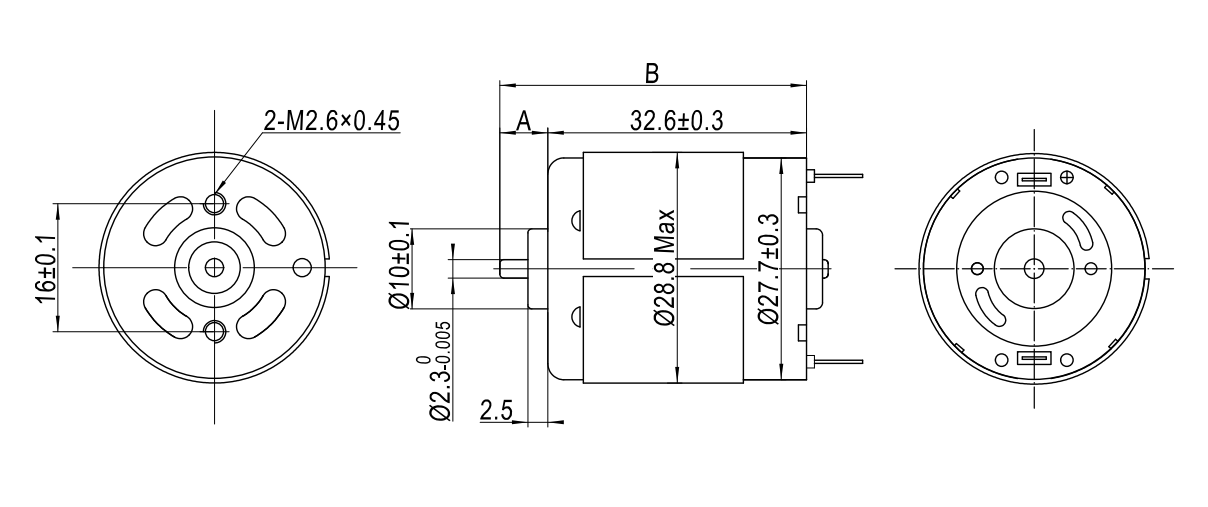

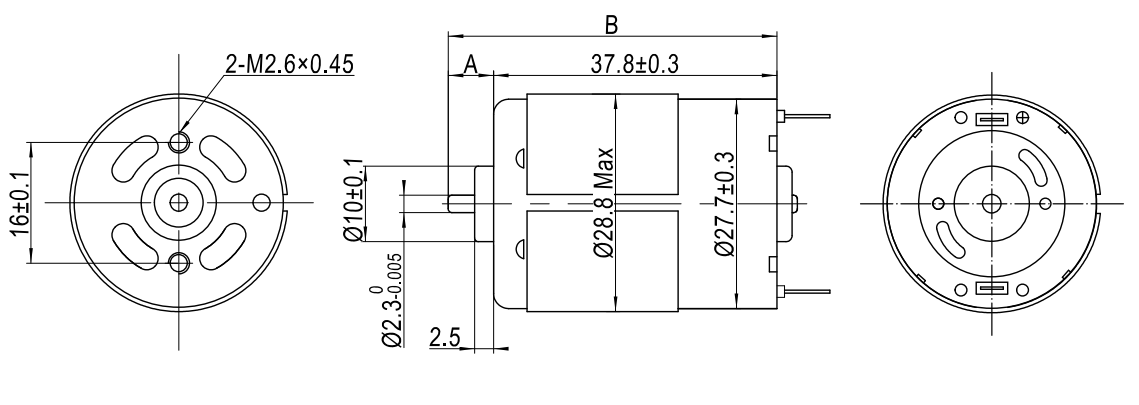

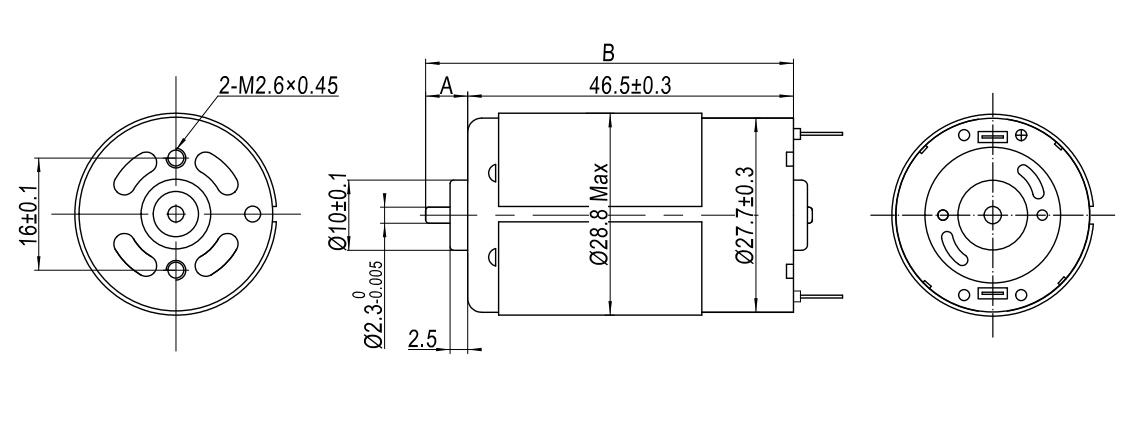

The length of shaft can be customized
| PMDC MOTOR Technical Data | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Model | Rated Voltage (V) | No-Load | Rated | Stall | |||||||
| Operating Range | Nominal | Speed (RPM) | Current (A) | Speed (RPM) | Current (A) | Torque (mN.m / gf.cm) | Power (W) | Current (A) | Torque (mN.m / gf.cm) | ||
| RS-390SH | 20156R | 6.0~12.0 | 12VDC | 5000 | 0.08 | 4243 | 0.33 | 6.07/61.9 | 2.72 | 2.22 | 42.2/430 |
| 2975 | 6.0~12.0 | 12VDC | 12000 | 0.29 | 10165 | 0.33 | 5.75/58.6 | 1.31 | 8.9 | 80.4/820 | |
| RS-395SH | 15130 | 6.0~12.0 | 12VDC | 3650 | 0.66 | 2949 | 0.25 | 5.83/59.5 | 1.8 | 1.06 | 30.4/310 |
| 15100R | 6.0~24.0 | 24VDC | 10300 | 0.07 | 8893 | 0.38 | 7.09/72.3 | 6.68 | 2.66 | 54.9/560 | |
These motors are widely used in professional hair dryers, micro vacuum cleaners, personal care appliances, and other micro household appliances that require high-speed rotation and stable output torque.
Yes, specifications such as shaft length, operating voltage range, rated speed, stall torque, and output power can be fully customized according to your specific product requirements.
The typical operating voltage range spans from 6.0V to 24.0V DC. Common configurations include 12VDC and 24VDC models depending on the device's power requirements.
They differ in dimensions, operating speeds, current consumption, and output torque. This range allows you to select the precise size and performance configuration to match your appliance's design limits.
Yes, we offer both brush and brushless customized configurations depending on your application requirements for service life, noise levels, and efficiency.
Depending on the specific winding and voltage configuration, no-load speeds typically range from 3,650 RPM up to 12,000 RPM, providing versatile options for suction and airflow systems.
