Home > DC Motor > Shunli RS-380 RS-385 Micro 380 DC Motor 12V~24V 13000RPM High Speed Large Torque for Electric Drill Garden Tools Toy Model
Shunli RS-380 RS-385 Micro 380 DC Motor 12V~24V 13000RPM High Speed Large Torque for Electric Drill Garden Tools Toy Model
Shunli RS-380 RS-385 Micro 380 DC Motor 12V~24V 13000RPM High Speed Large Torque for Electric Drill Garden Tools Toy Model
Shunli RS-380 RS-385 Micro 380 DC Motor 12V~24V 13000RPM High Speed Large Torque for Electric Drill Garden Tools Toy Model
Shunli RS-380 RS-385 Micro 380 DC Motor 12V~24V 13000RPM High Speed Large Torque for Electric Drill Garden Tools Toy Model
Shunli RS-380 RS-385 Micro 380 DC Motor 12V~24V 13000RPM High Speed Large Torque for Electric Drill Garden Tools Toy Model
1 / 5
Shunli RS-380 RS-385 Micro 380 DC Motor 12V~24V 13000RPM High Speed Large Torque for Electric Drill Garden Tools Toy Model
Shunli RS-380 RS-385 Micro 380 DC Motor 12V~24V 13000RPM High Speed Large Torque for Electric Drill Garden Tools Toy Model
Shunli RS-380 RS-385 Micro 380 DC Motor 12V~24V 13000RPM High Speed Large Torque for Electric Drill Garden Tools Toy Model
Shunli RS-380 RS-385 Micro 380 DC Motor 12V~24V 13000RPM High Speed Large Torque for Electric Drill Garden Tools Toy Model
Shunli RS-380 RS-385 Micro 380 DC Motor 12V~24V 13000RPM High Speed Large Torque for Electric Drill Garden Tools Toy Model

Shunli RS-380 RS-385 Micro 380 DC Motor 12V~24V 13000RPM High Speed Large Torque for Electric Drill Garden Tools Toy Model

Send Inquiry

Product Description

RS-380 RS-385 Micro 380 DC Motor 12V~24V 13000RPM High Speed Large Torque Micro DC Motor Banner

RS-380 RS-385 Micro 380 DC Motor 12V~24V 13000RPM High Speed Large Torque for Electric Drill Garden Tools Toy Model

Product Description

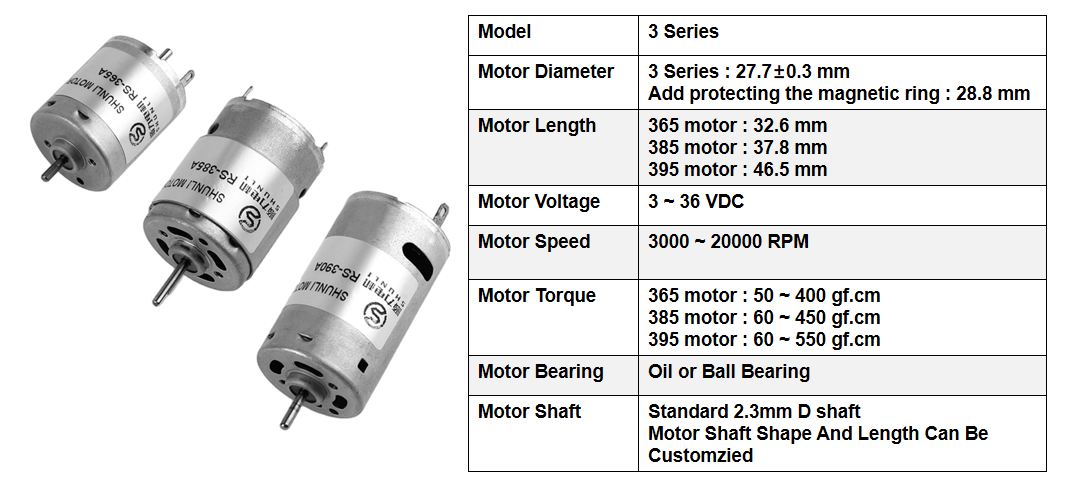

Product Details
Product Details Specifications
Motor Customized Specification, Please contact us.
Reference Drawing
------ RS - 365
RS-365 Reference Drawing
------ RS - 385
RS-385 Reference Drawing
------ RS - 395
RS-395 Reference Drawing
The length of shaft can be customized, Please contact us.
Reference Datasheet
PMDC MOTOR Technical Data
Model Rated Voltage (V) No-Load Rated Stall
Operating Range Nominal Speed Current Speed Current Torque Power Current Torque
RPM A RPM A mN.m / gf.cm W A mN.m / gf.cm
RS-390SH 20156R 6.0~12.0 12VDC 5000 0.08 4243 0.33 6.07 / 61.9 2.72 2.22 42.2 / 430
2975 6.0~12.0 12VDC 12000 0.29 10165 0.33 5.75 / 58.6 1.31 8.9 80.4 / 820
RS-395SH 15130 6.0~12.0 12VDC 3650 0.66 2949 0.25 5.83 / 59.5 1.8 1.06 30.4 / 310
15100R 6.0~24.0 24VDC 10300 0.07 8893 0.38 7.09 / 72.3 6.68 2.66 54.9 / 560
Recommend Product
Recommend Product Range
Recommended Micro Motor 1 Recommended Micro Motor 2 Recommended Micro Motor 3 Recommended Micro Motor 4 Recommended Micro Motor 5 Recommended Micro Motor 6 Recommended Micro Motor 7
Contact Us

Looking forward to your feedback!

Feedback Banner
Frequently Asked Questions (FAQ)
What is the voltage range for the RS-380 and RS-385 micro DC motors?
These micro DC motors typically operate within a voltage range of 12V to 24V, making them highly versatile for different power supplies and applications.
What are the main applications of these high-speed motors?
Due to their high speed (up to 13,000 RPM) and large torque, they are ideally suited for electric drills, garden tools, toy models, and various DIY mechanical applications.
Can the motor shaft length and other technical specifications be customized?
Yes, absolutely. The shaft length, operating voltage range, rated speed, torque, and other design specifications can be customized to match your specific project requirements.
How do I select the right motor model between the RS-380, RS-385, and RS-395?
Please refer to the technical drawings and comparison datasheet provided above. Choose the model based on your requirements for dimensions, operating voltage, RPM, and stall torque.
Do you provide technical datasheets for custom models?
Yes, once you provide your custom specifications (such as speed, voltage, and shaft configuration), we can share the matching technical parameters and drawings.
